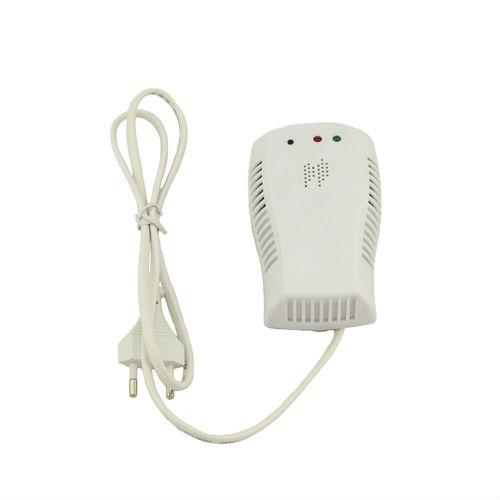

Wholesale 110v AC220V Wireless Gas Leakage Detector

8.45 USD

Wireless Gas leak detectors
Features:

Working voltage AC110 AC220 V
Static power (5W
Gas concentration alarm 0.5%-1%
Transmitting frequency 315MHZ - 433MHZ
Temperature -15~+50°C
Max power ≤2W
Environment Humidity≤97RH
Temperature -15~+50'C

First: Technical Parameter
Type KL-QG05
Density of Alarm
City Gas: 0.5%1.0
Natural Gas: 0.5%1.5
LPG: 0.5%1.0
Voltage: AC110 AC220V 50HZ / DC12V
Max power ≤2.0W
Alarm Wirelessly: Alarm with noise and light, radiating 315-433MHZ frequency signal
Alarm wired: Alarm with noise and light, outputting the signal of relay ofon/ off.
Environment: Humidity≤97RH .
Temperature -15~+50 Celsius

1. Installation site: In 1.5 meters from the source of gas , The LPG must be 0.3m above the ground; while the naturalgas and the city gas should be 0.3mfar from the ceiling.
2. Green lamp: Power signal, Light for Alarm; Red lamp: Alarm lamp, Light forAlarm; Button: for testing the alarm function, pressing this key , the red lamp turn on withD. noise sent out by the Buzzer
3. The alarm begins to work after 3 minutes power on . when the examine air densityattains to the point of alarm, the red lamp will light and the annunciatorsounds; while it is lower this point, stop alerting.
4. When the annunciator sounds, it also sendout the wireless signal of 2-3 second (wireless type ) or the signal of relay (widely) for on / off to the host computer at the same time
5. The processing method: when it alarm, open the doors and windows, turn off thesource of the gas, Forbid switching power or presenting the kindling material. Report the department concerned, ask for the professional.
6. Themethods of wiring: +12V for red wire, wire the ground for the black wire. Theoutput switch K wires to the ON, G wires the public, A and B wires the OFF.
