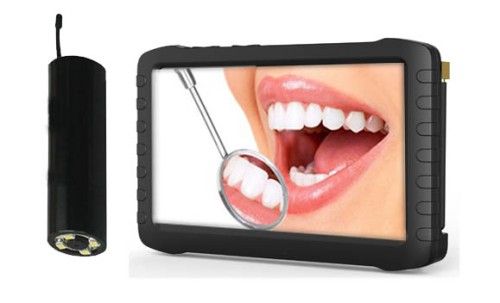

2.4GHz Wireless Pipe Inspection Camera Monitor (5 inch screen monitor, motion detect)
Product Details
Basic Info.
Model NO.: TE810H
Technology: Wireless
Style: Mini Camera
Type: CCTV Camera
Sensor: CMOS
Horizontal Resolution: 520tvl
Kind: Manual Focus Lens
Certification: CE, FCC, RoHS
Feature: Mini Size
Tvl: 520
Export Markets: Global
Additional Info.
Trademark: 3rd Eye
Packing: Strong Paper Pack!
Standard: CE, ROHS
Origin: Shenzhen, China
Production Capacity: 5000units/ Month
Product Description
Product Description
Selling points:
*Super small size & light weight camera & DVR, very convenient to carry;
*High resolution 720X586pix (PAL) , 720x480pix (NTSC) , 480TVL camera offers good quality video;
*6 bright LED offers 8 meters clear view in complete darkness. (LED can be turn off too) ;
*High capacity built-in Li-battery offers power supply for camera and DVR anywhere;
*No need any installation, and very easy to operate, just power on and it works!
* First complete wireless mini inspection camera with LED in the world!
* Portable 5-inch HD (800X480pix) DVR offers both real time and recorded videos & photos;
* Motion detect recording and loop recording available;
* Large memory available ( support mini SD card up to 32GB)
* Wireless transmission offers convenience for remote view.
Items | Value | |
| Wireless Receiving | 2.4GHz - 8 channels | CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz |
| Within 5.8G- 8 channels | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz | |
| Beyond 5.8G- 8 channels | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz | |
| Sensitivity | -92dB | |
| Receiving distance | 100 meters | |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V | |
| HD 5-inch LCD screen | Active area | 108mm (W) X 64.8mm (H) |
| Resolution | 800 X 480 Pixel | |
| Luminance for LCM | 200 cd/ sqm | |
| Cape clear 5-inch LCD screen | Active area | 118mm (W) X 62.8mm (H) |
| Resolution | 480 X 272 Pixel | |
| Luminance for LCM | 300cd/ sqm | |
| Video | Resolution | 720*576 / 640*480 |
| Video compress | MPEG-AVI 30fps | |
| Play format | MPEG-AVI | |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW (16O) (suit to largest volume) | |
| Speaker | 1W | |
| Photo | Format | JPG/ JPEG |
| Storage | External SD card | TF card 1GB-32GB (optional) |
| 32GB recording time | 10-32 hours | |
| 1GB photos | 15625pcs | |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 | |
| Language | Multiple | |
| Power | Voltage | DC 5V |
| Current (receiving mode) | 660MA | |
| Current ( recording mode) | 680MA | |
| Current (recording with off-screen mode) | 340MA | |
| AC adapter | DC 5V 2A | |
| Built-in battery | Li-battery 3200mAh | |
| Standby time | Wireless record | ≥ 9.5 hours (off-screen) ; ≥ 5hours (on-screen) |
| Wired record | ≥ 12 hous (off-screen) ; ≥ 6hours (on-screen) *LED camera not included. | |
| Size (L x W x H) | 131mm x 86mm x 18mm | |
| Weight (g) | 205g | |
