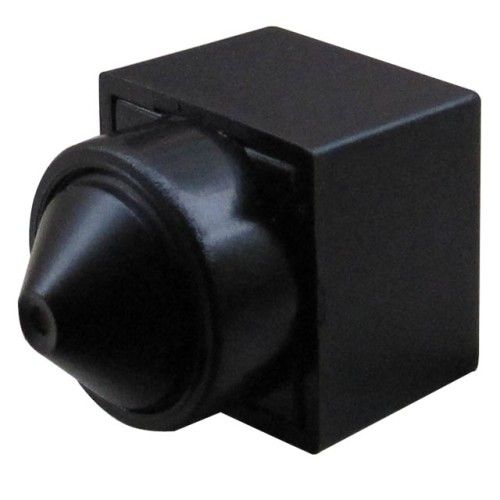

Mini Color Camera with Audio 90 Deg View Angle (MC91AP36)
Product Details
Basic Info.
Model NO.: MC91AP36
Technology: Mini Size
Style: Mini Camera
Type: Wide-Angle
Sensor: CMOS
HDMI Format: 520tvl
Horizontal Resolution: 480tvl
Kind: Manual Focus Lens
Certification: CE, FCC, RoHS, SGS
Feature: Mini Size
Effective Distance: 10-30m
Sensor Size: 1/3 inch
Working Voltage: 4-24V
Resolution: 480 Tvl Hige Video
View Angle: 90 Deg View Angle
Warranty: 12 Months
Export Markets: Global
Additional Info.
Trademark: 3rd Eye
Packing: 1 PCS/ Color Box, 100 PCS/ Carton
Standard: CE, FCC, RoHS
Origin: China
HS Code: 8525801390
Production Capacity: 5000 PCS/ Month
Product Description
Mini color camera with audio 90 deg view angle (MC91AP36)
Model: MC91AP36
Main Features
1.90 degree wide view angle lens, . 6-24V wide voltage;
2. Small Size: Easy to install into narrow room and slim tube, etc.;
3. High resolution, high sensitivity, high SNR;
4. Day & night dual mode auto switch;
5. Low Illumination, Low Current and power consumption;
6. CMOS sensor generation IV+DSP chip offer true color & HD video and audio.
Usage
1) CCTV cameras can be used directly with a standard TV/ VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/ VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
Model: MC91AP36
Main Features
1.90 degree wide view angle lens, . 6-24V wide voltage;
2. Small Size: Easy to install into narrow room and slim tube, etc.;
3. High resolution, high sensitivity, high SNR;
4. Day & night dual mode auto switch;
5. Low Illumination, Low Current and power consumption;
6. CMOS sensor generation IV+DSP chip offer true color & HD video and audio.
Usage
1) CCTV cameras can be used directly with a standard TV/ VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/ VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
PICK UP ELEMENT | Single chip 1/4CMOS | |
SYSTEM | NTSC | PAL |
NUMBER OF PIXEL | NTSC: 720 ( H ) * 480 ( V) | PAL: 720 ( H ) * 576 ( V) |
SENSOR DIMENSION | 3.584mm ( H ) * 2.688mm ( V) | |
HORIZONTAL RESOLUTION | Approximately 480TV Lines | |
SENSITIVITY | 0.1Lux/ F2.8 | |
LENS & VIEW ANGLE | F2.8/ 90° | |
S/ N RATIO | 48dB | |
AUTO GAIN CONTROL | OUT | |
WHITE BALANCE CONTROL | OUT | |
BACK LIGHT COMPENSATION | OUT | |
VIDEO OUT | 1.0V p-p/ 75ohm audio out: 1.0V p-p/ 75ohm | |
WEIGHT | 6g | |
SIZE ( LXWXH) | 15.5X15.5X20mm | |
WORK CURRENT | DC12V: 45mA DC5V: 95mA | |
POWER REQUIREMENT | DC: 3.6V-24V | |
OPERATING TEMPERATURE | - 10° C ~ +50° C, less than 90% RH | |
Connection | PIN1=) Red DC5V / 12V PIN2=) Black GND PIN3=) Yellow VIDEO OUT | |
