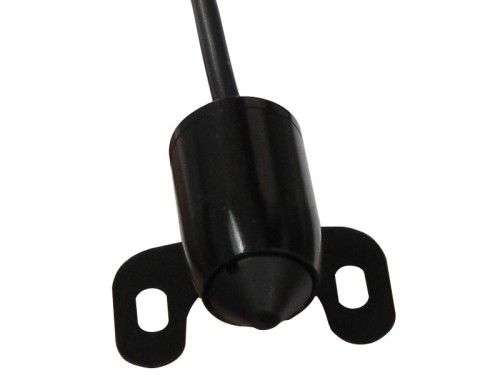

12V Mini Car Camera-0.008lux, 90deg View Angle (MC908-12)
bargain
add to cartProduct Details
Basic Info.
Model NO.: MC908-12
Technology: 0.008lux/ F1.2
Style: Mini Camera
Type: CCTV Camera
Sensor: CMOS
Horizontal Resolution: 520tvl
Kind: Manual Focus Lens
Feature: Mini Size
Syetem: NTSC or PAL
Pixel: 0.3mega
Night Vision: 0.008lux/ F1.2
View Angle: 2.8 Mm F1.2/90deg
Size: 15x24mm
Weight: 5g
Power Supply: DC9-12V 45mA
Connector: BNC or RCA
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
Additional Info.
Trademark: 3rd Eye
Packing: 1PC/ Gift Box, 10PCS or More / Carton Box
Origin: China
HS Code: 85258013
Production Capacity: 3000PCS/ Month
Product Description
Features:
1) Micro size: 15x24, weight 5g, easy to install and conceal
2) 0.008low lux mini camera, can work under low light
3) 520tvl HD CCTV camera
4) 90deg wide view angle
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage:
1) CCTV cameras can be used directly with a standard TV/ VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/ VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
Accessories:
AV cablex1 (RCA or BNC) , AC adapterx1, Manualx1
1) Micro size: 15x24, weight 5g, easy to install and conceal
2) 0.008low lux mini camera, can work under low light
3) 520tvl HD CCTV camera
4) 90deg wide view angle
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage:
1) CCTV cameras can be used directly with a standard TV/ VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/ VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
Accessories:
AV cablex1 (RCA or BNC) , AC adapterx1, Manualx1
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM (NTSC or Pal) | NTSC | PAL |
| NUMBER OF PIXEL | NTSC : 656 ( H ) * 492 ( V ) | PAL : 786 ( H ) * 576 ( V ) |
| SENSOR DIMENSION | 4.75mm ( H ) * 3.55mm ( V ) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SENSITIVITY | 0.008Lux/ F1.2 | |
| LENS & VIEW ANGLE | 2.8mm F1.2 / 90° | |
| S/ N RATIO | 48dB | |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/ 75ohm | |
| AUDIO OUT | 1.0V p-p/ 1Kohm (only MC908A) | |
| SIZE (L x W x H) | 15x24mm | |
| WEIGHT | 5g | |
| WORK CURRENT | 45mA | |
| POWER REQUIREMENT | DC 6-12v | |
| OPERATING TEMPERATURE | - 10° C ~ +50° C , less than 90% RH | |
| Connection | PIN1 à Red DC5V PIN2 à Black GND PIN3 à Yellow VIDEO OUT PIN4 à White AUDIO OUT | |
