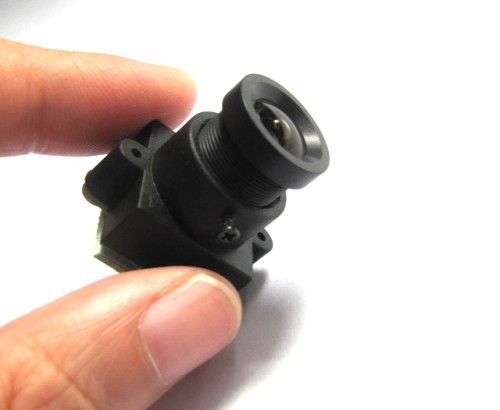

12V 120 Degree 520tvl Micro CCTV Camera for Home, Warehouse, Stores
Product Details
Basic Info.
Model NO.: MC495-12
Technology: 0.008lux/ F1.2
Style: Mini Camera
Type: CCTV Camera
Sensor: CMOS
Horizontal Resolution: 520tvl
Kind: Manual Focus Lens
Feature: Mini Size
Effective Distance: 0-9m
Sensor Size: 1/4 inch
Remote Control: Without Remote Control
Syetem: NTSC or PAL
Pixel: 0.3mega
Night Vision: 0.008lux/ F1.2
View Angle: 3.6mm F1.2/120 Deg
Size: 24X18X15mm
Weight: 5g
Power Supply: DC9-12V 72mA
Connector: BNC or RCA
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
Additional Info.
Trademark: 3rd Eye
Packing: 1PC/ Gift Box, 10PCS or More / Carton Box
Origin: China
Production Capacity: 3000PCS/ Month
Product Description
Features
1) mini size CCTV camera: 24x18x15mm, weight: 5g
2) 0.008 low lux, can work under dim light
3) 520tvl HD clear video
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage:
1) CCTV cameras can be used directly with a standard TV/ VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/ VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
Accessories:
AV cablex1 (RCA or BNC) , AC adapterx1, Manualx1
1) mini size CCTV camera: 24x18x15mm, weight: 5g
2) 0.008 low lux, can work under dim light
3) 520tvl HD clear video
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage:
1) CCTV cameras can be used directly with a standard TV/ VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/ VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
Accessories:
AV cablex1 (RCA or BNC) , AC adapterx1, Manualx1
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC : 656 ( H ) * 492 ( V ) | PAL : 786 ( H ) * 576 ( V ) |
| SENSOR DIMENSION | 4.75mm ( H ) * 3.55mm ( V ) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SENSITIVITY | 0.008Lux/ F1.2 | |
| LENS & VIEW ANGLE | 3.6mm F1.2 / 120° | |
| S/ N RATIO | 48dB | |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/ 75ohm | |
| SIZE (L x W x H) | 24x18x15mm | |
| WEIGHT | 5g | |
| WORK CURRENT | 75mA | |
| POWER REQUIREMENT | DC 9-12v 72mA | |
| OPERATING TEMPERATURE | - 10° C ~ +50° C , less than 90% RH | |
| Connection | PIN1 à Red DC5V PIN2 à Black GND PIN3 à Yellow VIDEO OUT | |
