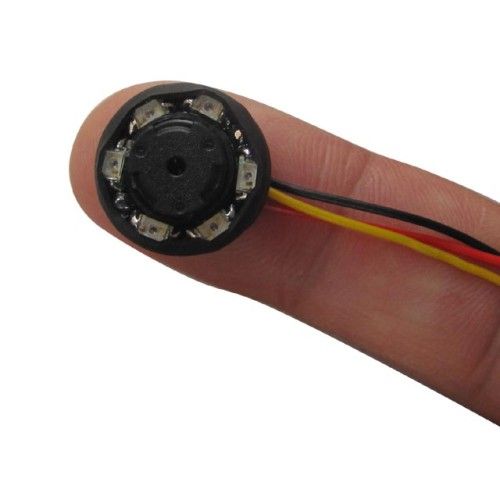

940nm Invisible IR Camera-Mini IR Camera: 14.5x15.5mm, 2metres View, 520tvl (MCV6-IR940)

940nm Invisible IR Camera-Mini IR Camera: 14.5x15.5mm, 2metres View, 520tvl (MCV6-IR940)

bargain

add to cart

Product Details

Basic Info.

Model NO.: MCV6-IR940
Technology: 0.008lux/ F2.0
Style: Mini Camera
Type: CCTV Camera
Sensor: CMOS
Horizontal Resolution: 520tvl
Kind: Manual Focus Lens
Feature: Mini Size
Syetem: NTSC or PAL
Pixel: 0.3mega
Night Vision: 0lux/ 2m 6IR Lights
IR: 940nm/ 2m
View Angle: 0.5mm F2.0/55deg
Size: 14.5x15.5mm
Weight: 5g
Power Supply: DC 3.3-5V 70mA
Connector: BNC or RCA
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark: 3rd Eye
Packing: 1PC/ Gift Box, 10PCS or More / Carton Box
Origin: China
HS Code: 85258013
Production Capacity: 3000PCS/ Month

Product Description

Features:
1) Micro size camera: 14.5x14.5, weight is 3G, easy to install and conceal
2) 940nm invisible IR light, no glow red.
3) 520tvl HD CCTV camera

Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC : 656 ( H ) * 492 ( V ) PAL : 786 ( H ) * 576 ( V )
SENSOR DIMENSION 4.75mm ( H ) * 3.55mm ( V )
HORIZONTAL RESOLUTION Approximately 520TV Lines
SENSITIVITY 0Lux/ IR turn on
LENS & VIEW ANGLE 0.5mm F2.0 / 55°
S/ N RATIO 48dB
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/ 75ohm
AUDIO OUT 1.0V p-p/ 1Kohm
SIZE (L x W x H) 14.5x15.5mm
WEIGHT 5g
WORK CURRENT IR on 200mA
POWER REQUIREMENT DC 3.6V-5V
OPERATING TEMPERATURE - 10° C ~ +50° C , less than 90% RH
Connection
PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT
