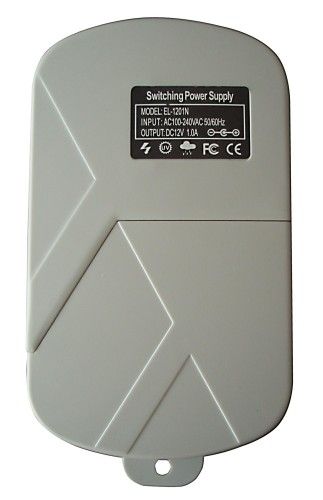

CCTV Power Adaptor Waterproof 110~220V AC to 12vdc (CV-PA1201W)
bargain
add to cartProduct Details
Basic Info.
Output Type: DC
Color: White
Type: OEM
Connection: Plug In
Export Markets: Global
Product Description
1) . Waterproof design
2) . Anti-UV Housing
3) . Hub of connectors
4) . Easy to install
2) . Anti-UV Housing
3) . Hub of connectors
4) . Easy to install
| Part No. | CV-PA1201W | ||
| Output Voltage | 1A | ||
| Input Rated Voltage | AC 100V ~240V | ||
| InputVoltage Range | AC 90V ~264V | ||
| Input Rated Frequency | 50/60Hz | ||
| InputFrequency Range | 47Hz~63Hz | ||
| Input Current | 0.5A (Max) at AC100V | ||
| Input Inrush Current | 50A (Max) at AC240V | ||
| Efficiency | 70% (MIN) at Rated Voltage | ||
| DC Output Voltage | 11.4V-12.6V | ||
| DC Output Power | 12 W (max) | ||
| Withstand Voltage | AC 1500V (Min ) , 3.5mA (Max ) | ||
| Insulation Resistance | DC 500V 10MΩ (Max) | ||
| Ripple and Noise. | ≤ 120MV at full load with 20MHz bandwidth | ||
| Turn On Delay Time. | ≤ 3S (AC: 110V and full load) | ||
| Over Voltage Protection | 120%min | ||
| Over Current Protection | 120%min | ||
| Snort Protection | Ac to Recovery | ||
| Leakage Current | ≤ . 5mA | ||
| DC plug | 5.5*2.1*10mm (as your request) | ||
| Dimension | 150mm*90mm*40mm | ||
| Weight | N. W.: 150g G. W.: 190g | ||
