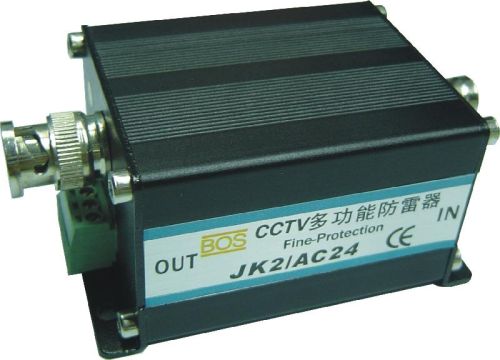

Surge Protector (CV-JK2\24)
bargain
add to cartBasic Info.
Export Markets: Global
Product Description
Surge Protector (CV-JK2/24)
CV-JK series muntifunctional SPD is special designed for lightning productive requirements for Surveillance Systems. Fulfilling lightning & static productive requirements for power, video & pan/ tilt line of security camera. The Maximum Discharge Current is 10KA and the Response Time is 1Ns. Which is able to protect the Surveillance device from the over voltage damage due to lightning & static very effectively.
CV-JK series muntifunctional SPD is special designed for lightning productive requirements for Surveillance Systems. Fulfilling lightning & static productive requirements for power, video & pan/ tilt line of security camera. The Maximum Discharge Current is 10KA and the Response Time is 1Ns. Which is able to protect the Surveillance device from the over voltage damage due to lightning & static very effectively.
| Item No. | CV-JK2/24 |
| Dimension | 63*52*40mm |
| Description | Multifunctional SPD |
| Power Protective Specs | |
| Nominal Operating Voltage (Un) | 24V AC |
| Maximum continuous operating voltage (Uc) | ≤ 30V |
| Maximum Discharge Current (Imax) (8/20us) | 10KA |
| Response Time (Ta) | 1nS |
| Video Signal Protective Specs | |
| Nominal Operating Voltage (Un) | 5V |
| Maximum continuous operating voltage (Uc) | 8V |
| Nominal Discharge Current (Imax) (8/20us) | 10KA |
| Maximum Discharge Current (Imax) (8/20us) | 10KA |
| Response Time (Ta) | 1nS |
| Connection Form | BNC |
| Insertion Loss (Ae) | 0.3dB |
