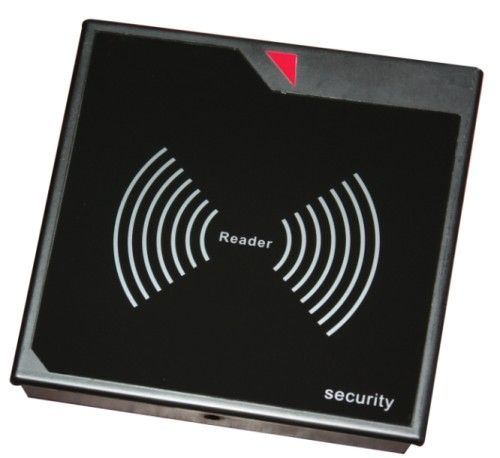

125 kHz or 13.56 MHz Reader with Wiegand 26, 34 Protocol
Proximity-card Reader for Access Control, Wiegand


Specification:

Wiegand 26bits/ Wiegand34bits Standard Format Data Output

Less than 0.2 second Response Speed

5-10cm Proximity Range

Ambient Temperature: -25º C to 75º C

Ambient Humidity: 10%-90%

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

100 Meters Communication Distance

Real Time Data Transfer

With Water-Proof Function

Audiovisual indication: When a registered card is presented to the reader, the re

LED flashes green and the beep sounds.

100*100*21 (mm)

Package: 100pcs per carton. Carton Size: 43.5*56*23 (cm)
