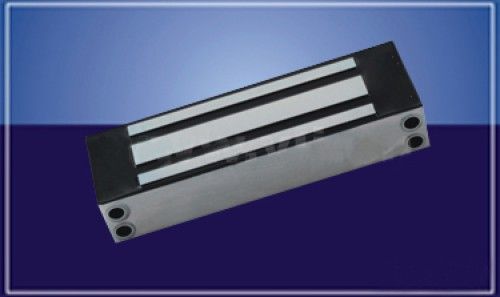

Newest 500 Kg Waterproof for Single Door Magnetic Locks


Lock size: 230L X63WX39H (mm)
Holding force: 500 kg (1200 Lbs)
Voltage: 12/24VDC
Current Draw: 12 V / 480 mA, 24 V / 240 mA
Open the door way: 90 °
Installation types: Side outfit, hanging installation
Professional device: Built-in impulse absorber
Security types: Without electricity in the lock
Signal output: JS-500 W without signal output
Take the door state detect dry contact output (locking up for NO)
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: 10~+55 (14-131F)
Suitable Humidity: 0~90% (non-condensing)
Finishes for Shell: Stainless steel
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 5 kg / piece
