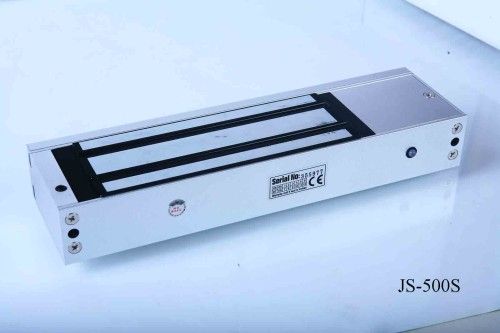

CE Certified of Js-500s 1200lbs Single Door Electric Security Magnetic Lock with LED
Model: JS-500S


Lock Size: 265L x 75W x 38.8H (mm)

Armature plate: 185Lx60Wx13H (mm)

Holding Force: 500kg (1200Lbs)

Voltage: 12/24VDC

Current Draw: 12V/ 420mA 24V/ 210mA

Signal Output: Dry Contact, Max Rating of Contact Current 3A

LED indicates the door is unlock, Green indicates the door is locked

Suitable for: Wooden door, Glass door, Metal door, Fireproof door

Surface Temp: ≤ +20

Operating Temp: 10~+55 (14-131F)

Suitable Humidity: 0~90% (non-condensing)

Finishes for Shell: Anodized aluminum

Finishes for Magnetic: Zinc

Finishes for Armature: Zinc

Weight: 4.5kg
