Support Standards: IEEE 802.11 b/ g/ n

Fequency: 2400-2500MHz

Working Pattern: TDD

RF Output Power: 37dbm (5w)

Input Trigger Power: Min: 3dbm Max: 20dbm

Transmit Gain: 17db typical

Receiver Gain: 11db typical

Switch Time Delay: (1us

Noise Figure: 3.0db (typical)

Operating Temp: -40~+70'C

Working Voltage: 6-18VDC

Operating Humidity: up to 95'rel.humidity

Indicating Lamp: Transmitter: Green/ Receive: Red

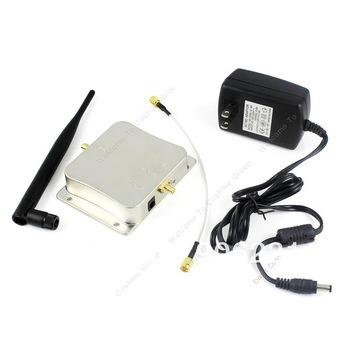

How to connect:

Step 1: Remove the antenna from the wireless router (access point) .

Step 2: Use RG316 cable to connect the booster and AP.

Step 3: Connect the antenna to the other end of booster.

Step 4: Plug in the power adapter.
