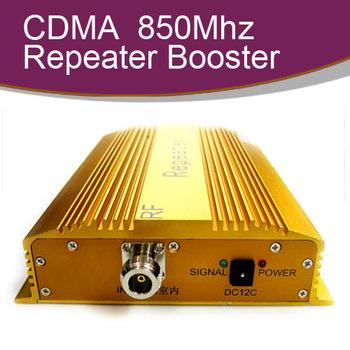

Features: - High gain, easy installation and operation;
- Full-duplex, single-port design, built-in power supply;
- Use ALC technology, adjust extent automatically;
- CE and RoHs Approved.
Specifications: | Model Name | CDMA980-GY | | Frequency range | Uplink 824~849MHz | | Downlink 869~894MHz | | Gain ( dBi) | Uplink Gp≥60 | | Downlink Gp≥65 | | Output Power (Po) | ≥27dBm | | Flatness In Band | ≤3dB | | Guard Band Rejection | (BW-60dB) ≤42MHz . (BW-70dB) ≤45MHz | | I/ O Impedance | 50Ω/ N connector | | I/ O Return loss | ≤-3dB | | Noise Figure | ≤4dB | | Intermodulation Attenuation (Po=10dBm) | ≤-40dBc | | Transmission Delay | ≤0.5μs | | Ambient Temperature | -10~60 | | Power Supply | AC110~220V 45~55Hz | | Reliability | To the GB6993-86 standard | | Electromagnetic Compatibility | To the ETS300 694-4 standard | | Function | a) Power supply LED denote b) Export power LED denote | | Product Weight | 1090g | | Product Size | 237*142*40mm | | Color Box Size | 270*197*75mm | | N.W./ G.W | 1250/1430g | | Coverage Area | 2000 M2 | Package included: - 1*signal booster;
- 1*power adaptor;
- 1*connectors;
- 1*user manual
|
