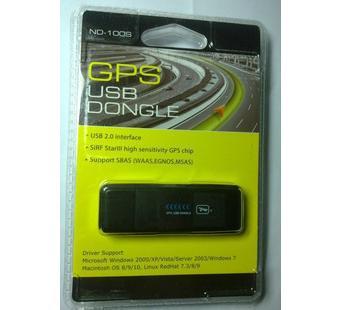

The ND-100S is a compact and portable device, which allows you to carry a GPS receiver for use on your laptop whenever you travel. The ND-100S requires no battery or cables, only your favorite NMEA compliant navigation software is all that's needed to turn a laptop into a powerful navigation system.

USB 2.0 interface

Build-in SiRF Star III GPS chi

Support SBAS (WAAS, EGNOS and RTCM)

Support Microsoft® Windows 2000/ XP/ Server 2003/ Vista/ 7TM

Support Macintosh OS 8/9/10. X, RedHat 7.3 / 8.0 / 9.0

Specifications:

GPS Characteristics

GPS Chipset SiRF Star III

Frequency L1, 1575.42 MHz

Code C/ A Code

Channels 20

Sensitivity Tracking: -159dBm

GPS Antenna Type Built-in ceramic patch antenna (18 x 18 x 4mm)

Acquisition Rate

Hot start 1 sec., average

Warm start 38 sec., average

Cold start 42 sec., average

Reacquisition <1 sec. average

Protocol

GPS Protocol NMEA 0183v3 GGA (1sec) , GSA (1sec) , GSV (5sec) ,RMC (1sec) , GLL, VTG is optional

Baud Rate 4800 bps

USB Protocol USB 2.0

Operating Systems

Windows 98 / 2000 / XP / Vista / 7

Macintosh Mac OS 8&9 / Mac OS10

Linux RedHat 7.3 / 8.0 / 9.0

Temperature

Operating -4°~140°F (-20°~60°C)

Storage -22°~ 158°F (-30°~70°C)

Humidity Up to 95% non-condensing

Power

Voltage DC 5.0V, USB bus power

Current < 55 mA

Physical Characteristics

Dimension 2.6'L x 0.9'W x 0.4'H (65.5L x 23W x 11H mm)

Unit Weight 0.04 lbs (20g)
