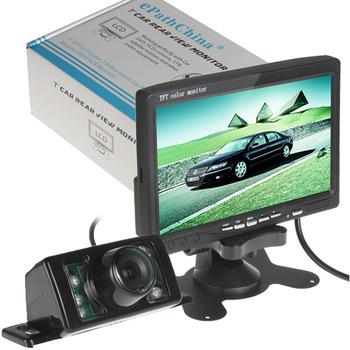

7 Inch TFT LCD Color Display Screen Car Rear View DVD VCR Monitor + 7 IR LED Lights Night Vision Rearview Reversing Camera

Specifications:

7 Inch TFT LCD Color Car Rear View DVD VCR Monitor

Main function:

- 100% Brand New, with 7 inch LED backlight color TFT LCD display monitor.

- With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.

- Parking rear view priority: The monitor will start up automatically, and synchronously display the video from rear view camera when you're backing your car; the monitor will close itself after backing.

- Scenes will cut to rear view camera automatically while you're backing the car and change back to the original scene after that.

- Blue wire is for displaying car reversing image automatically when it's connected with a rearview camera. You need to adjust it manually if the blue wire is not connected.

- Support rotating the screen for easy view.

- Support adjust the Brightness, contrast, color.

- 2 ways to install: standing or mounting.

- Low power consumption, long lifetime.

- No Audio input or output.

- Comes with an IR remote controller for a easy operation.

- Working perfectly with Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.

Display Screen:

- Screen Size: 7 inch

- Display Component: Color TFT LCD

- Screen ratio 16: 9 / 4: 3 adjustable

- Resolution: 480 x 234 Pixels

- Contrast Ratio: 100 : 1

Housing Material: ABS

Video Frequency: PAL / NTSC

Power supply: DC 12V

Working Temperature:

- Work: 0 to 80 degrees C

- Storage: -10 to 80 degrees C

Product Dimensions (L x W x D) : 193 x 135 x 25mm

Monitor Weight: 381g

7 IR Lights Car Rear View Camera:

Main Features:

- High-definition & High-sensitivity - 420TV lines.

- Waterproof, Weatherproof, Shockproof function.

- Support night vision.

- 170 degree wide viewing angles.

Image Sensor: Color CMOS / CDC

TV System: NTSC / PAL

Effective Pixels:

- NTSC: 728 x 628 828 x 686

- PAL: 628 x 586

Scanning System: 2 : 1 Interface

Sync System: Internal

Resolution: 420 TV lines

Lens Angle: 2.8mm / 120 ~ 1.8mm / 170 Degree

Sensor Area: 5.961 x 4.276mm

Video Output: 1.0Vp-p, 75ohm

S / N Ratio: More than 48db

Waterproof: IP68

White Balance: Auto

Power: 60mA

Consumption: Max 300mA with IR on

Power Supply: DC 12V

Operating Temperature: - 20 ~ + 80 Centigrade

Storage Temperature: - 40 ~ + 80 Centigrade

Camera Net Weight: 54g

Package Weight: 180g

Approved: CE / FCC

After Sales Service: 1 Year Warranty
