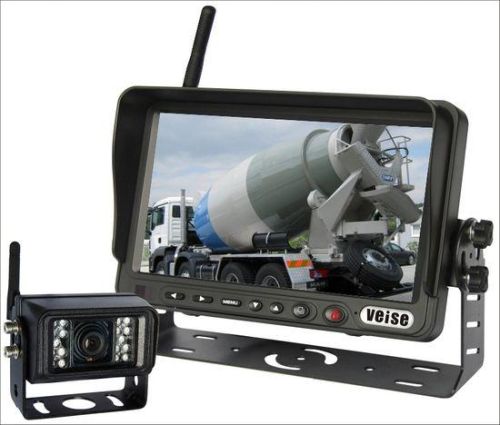

| 7' Wireless Receiving TFT LCD Monitor (Model: SP-726) |
| 7' Digital Screen Monitor with Removable Sun Visor |
| Built in (2.414/2.432/2.450/2.468) GHz Wireless Receiver (Standard 4CH Select 2CH) |
| Receiving sensitivity: ≤-85dB |
| Display Resolution: 2400 (H) X 480 (V) dot |
| Wide view angle (CR) 10) : (up/ down) : 45/65 (left/ right) : 65/65 |
| Brightness (cd/ m2) : 400 |
| Contrast ratio: 500: 1 |
| Color system: PAL/ NTSC |
| OSD MENU Set Camera Trigger Priority |
| OSD MENU Set Camera Reversing Image Delay Time 0-10' |
| OSD MENU Set Camera Mirror/ Normal image |
| Operating temperature: -20℃ to +70℃ |
| Storage temperature: -30℃ to +80℃ |
| Load Dump: DC14+67V (Td400mS) 5pulses |
| Power consumption: DC8~32V |
| ) External dimensions: L*W*T (180X118X23) mm (without mounting) |
| Weight Approx: 380g |
| |
| 2.4GHz Wireless Transmission Backup Camera (MODEL: DF-8073FS) |
| Image Type: 1/3'' Color CCD |
| Built in 2.4GHz transmitter and omni-directional antenna |
| Transmission Power : 10mW/ CE; 2mW/ FCC |
| Estimate of 100 meter wireless send distance without block |
| Horizontal Resolution: 420TV Lines |
| Effective pixel: NTSC: 510 (H) X492 (V) ;PAL: 500 (H) X582 (V) |
| Usable lllumination: 0Lux (Built ln 18 IR LED) |
| Free viewing angle: 130° |
| Shockproof: 10G |
| Waterproof: IP69k |
| Operation Temperature : -20°C~+70°C RH95%Max |
| Storage Temperature : -30°C~+80°C RH95%Max |
| Free Operating Voltage: DC11-32 Volts |
| Dimensions: 75 (W) X45 (D) X75 (H) mm |
| Weight : 200g |
| |
| Product Accessories |
| Monitor bracket, Auto Cigarette Lighter, Remote Control, User's Guide |
