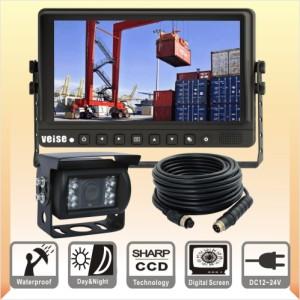

| TFT LCD Color Monitor (Model: SP-960) |
| 9'Digital Screen TFT LCD Color Monitor with Sun Visor |
| OSD MENU Separately Set Each Camera Trigger Priority |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30' |
| OSD MENU Separately Set Each Camera Mirror/ Normal image |
| Manual and Automatic Switch Display Mode |
| Color System: PAL/ NTSC (AUTO) |
| Display Resolution: 800RGB (H) X 480 (V) dot |
| Support 2 channel Camera Video Audio Inputs: 1.0Vp-p75Ω |
| Wide view angle (CR: 10) : (up/ down) : 45/65 (left/ right) : 65/65 |
| Contrast ratio: 500: 1 |
| Back-light : Single LED 400cd/ m2 Brightness |
| Operating temperature: -20℃ to +70℃ |
| Storage temperature: -30℃ to +80℃ |
| Load Dump: DC14+67V (Td400mS) 5pulses |
| Free Operating Voltage DC11-32V |
| External dimensions: (L x W x T) (234 x158 x 81mm) with mounting Sun Visor |
| Weight Approx: 479g |
| Aluminum Shell Waterproof IR Color Camera (MODEL: DF-4103) |
| Image Type: 1/3 Inch Color CCD |
| Horizontal Resolution: 420TV Lines |
| Effective pixel: NTSC: 510 (H) X492 (V) ;PAL: 500 (H) X582 (V) |
| Usable Illumination : 0Lux ( Built in 15pcs IR for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Video Output: 1.0Vp-p75Ω |
| Power supply: DC12V from Reversing Monitor |
| Dimensions: 69 (W) x 43 (H) x 38 (D) mm (without mounting) |
| Product Accessories |
| U- Support Bracket, Angle Adjustment Screw, Electrical Connecting Cable, 15m cable, Auto cigarette lighter, User's Manual |
