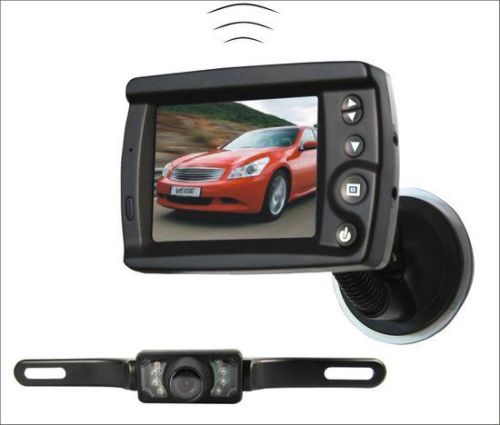

2.4GHz Wireless Rear View Monitor (Model: SP-356)

3.5'Digital Screen TFT LCD Color Monitor

Built in (2.414/2.432/2.450/2.468) GHz Wireless Receiver (Standard 4CH Select 2CH)

Receiving sensitivity: ≤-85dB

OSD MENU Set Camera Trigger Priority

OSD MENU Set Camera Reversing Image Delay Time 0-30'

OSD MENU Set Camera Mirror/ Normal image

Color System: PAL/ NTSC (AUTO)

Display Resolution: 320RGB (H) X 240 (V) dot

Wide view angle (CR: 10) : (up/ down) : 45/65 (left/ right) : 65/65

Contrast ratio: 500: 1

Back-light : Single LED 300cd/ m2 Brightness

Operating temperature: -20℃ to +70℃

Storage temperature: -30℃ to +80℃

Load Dump: DC14+87V (Td400mS) 5pulses

Free Operating Voltage DC11-32V

External dimensions: L*W*T (110X77X25) mmmm (without mounting)

Weight Approx: 230g

Mini Waterproof IR Camera with 2.4GHz Wireless Transmission Power Box (MODEL: DF-8027IRV)

Image Type: 1/3'' Color COMS

Horizontal Resolution: 420TV Lines

Effective pixel: NTSC: 510 (H) X492 (V) ;PAL: 500 (H) X582 (V)

Power Box Built in 2.4GHz Transmitter and Omni-directional Antenna

Transmission Power: 10mW/ CE; 2mW/ FCC

Estimate of 100 meter wireless send distance without block

Free viewing angle: 100°

Waterproof: IP67

Shockproof: 10G

Usable Illumination : 0Lux ( Built in 8pcs IR for Picture Support in the Dark)

Power Box Free Operating Voltage : DC11-32V

Dimensions: 160 (L) x 40 (W) x 50 (H) mm

Power Box Dimensions: L*W*T (42X31X28) mm

Product Accessories

Suction Mount, Antenna, Auto cigarette lighter, User's Manual
