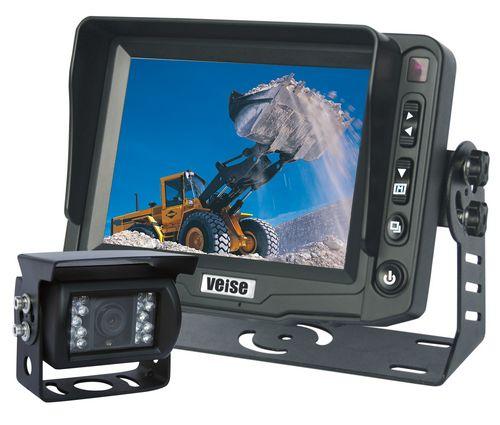

Rear View Waterproof IR Color Camera (MODEL: DF-4103)

Image Type: 1/3 Color CCD

Horizontal Resolution: 420TV Lines

Effective pixel: NTSC: 510 (H) X492 (V) ;PAL: 500 (H) X582 (V)

Usable Illumination : 0Lux ( Built in 18pcs IR for Picture Support in the Dark)

Free viewing angle: 130°

Waterproof: IP69K

Shockproof: 10G

Video Output: 1.0Vp-p75Ω

Power supply: DC12V from Reversing Monitor

Dimensions: 77 (L) x 77 (W) x 68 (H) mm

5 Inch Digital Screen TFT LCD Color Monitor (Model: SP-527)

Digital Screen TFT LCD Color Monitor with Removable Sun Visor

OSD MENU Separately Set Each Camera Trigger Priority

OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-10'

OSD MENU Separately Set Each Camera Mirror/ Normal image

Automatically Adjust Brightness to Display and Button by According Environment

Color System: PAL/ NTSC (AUTO)

Display Resolution: 640RGB (H) X 480 (V) dot

Accepts up to 2 Cameras Video Inputs: 1.0Vp-p75Ω

Wide view angle (CR: 10) : (up/ down) : 50/70 (left/ right) : 70/70

Contrast ratio: 500: 1

Back-light : Single LED 300cd/ m2 Brightness

Operating temperature: -20℃ to +70℃

Storage temperature: -30℃ to +80℃

Load Dump: DC14+87V (Td400mS) 5pulses

Free Operating Voltage DC8-32V

External dimensions: L*W*T (151X113X50) mm (without mounting)

Weight Approx: 270g

Product Accessories

U- Support Bracket, Angle Adjustment Screw, Removable Sun Visor, Electrical Connecting Cable, 15m cable, Auto cigarette lighter, Remote Control, User's Manual
