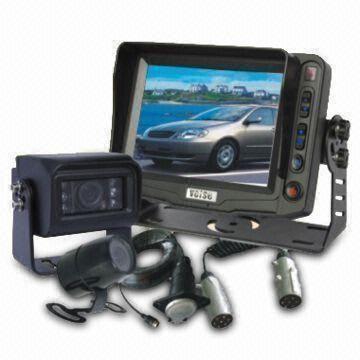

Free operating voltage 11 to 32V DC trailer rear-view system

Dual alloyed shell waterproof (IP68) color backup camera

7-inch TFT LCD reversing monitor with removable sun visor, onscreen menu for all settings:

Normal/ mirror view, reversing image delay, priority of reverse camera, automatic switch on (by reverse gear and or by direction lights) and built-in CDS sensor for illumination of the control knobs

Rear-view camera:

Model: DF-8015:

Waterproof IR 1/3-inch color CMOS camera

Horizontal resolution: 330TVL

Usable illumination: 3 lux (F1.4)

Lens: 2.8mm/ F2.0

150 degrees wide angle

Model: DF-4103:

Waterproof IR 1/3-inch color CCD camera

Resolution: 420TVL

Usable illumination: 0 lux (built-in 15 IR LED on)

Lens: 2.9mm/ F2.0

IR LED working distance: 5m

Water resistance: IP66, alloyed shell, waterproof for outdoor use

Video output: 1.0Vp-p, 75Ω

Power supply: 12V DC/ 150mA from monitor

7-inch TFT LCD reversing monitor (model: SP-717)

7-inch color reversing monitor with removable sun visor

Setting up the camera image normal or mirror

Responding time is less than 2 inches when reversing

Color systems: PAL/ NTSC

Display resolution: 960 x 234 dots

Audio output: 0.3W (maximum)

Wide viewing angle (CR) 10) :

Up/ down: 45/65°

Left/ right: 65/65°

Brightness (cd/ m²) : 300

Contrast ratio: 500: 1

Backlight: single LED

Operating temperature: -20 to +70℃

Storage temperature: -30 to +80℃

Power supply: 11 to 32V DC

External dimensions: 150 x 118 x 23mm

Weight: 300g

Product accessories :

Monitor bracket, 15m cable, electrical connecting cable and auto cigarette lighter
