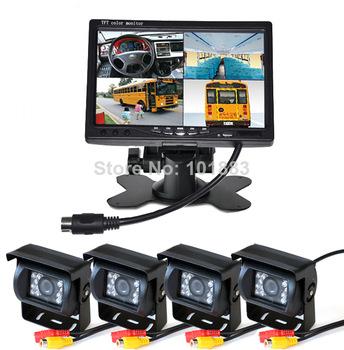

7 TFT LCD 4CH Video Quad Processor Car Monitor Rear view Kit

112.87 USD

This is a 7 Inch 4 CH Camera Video Quad Processor TFT LCD Color Monitor with Audio function. It has the 4 CH video input and 1 CH audio input. And it has the video quad processing function. With the remote controller, it can be set the video CH1, CH2, CH3, CH4 displaying.
Cautions: for your safety, drivers shouldn't watch the monitor or operate the controls while driving.
Note: When cold the monitor may appear dark; allow time for the vehicle to warm for the monitor to return to normal.

Specifications

7inch TFT LCD Monitor
16: 9 wide screen display
4 ways AV inputs
PAL&NTSC auto-switching
Resolution: 1440X234 dots
Power supply: DC12V/ 24V compatible
High resolutions with quad pictures
4 connector suitable for camera
Built-in speaker
Full images/ 2 images/ 4 images adjustable
Automatic switching with trigger
Suitable for back view/ side cameras
18 IR Car Reverse CCD COLOR CAMERA

Image sensor CCD
TV system : PAL / NTSC (we will sent the PAL or NTSC according your country)
Scanning system PAL: 625Lines 50Field / NTSC: 525Lines 60Field
Lens: 2.8mm (120°)
Number of pixels: 500 (H) *582 (V) 510 (H) *492 (V)
Horizontal Resolution: 420 TV Lines
Scan frequency: 50Hz ~60Hz
S/ N Ratio: ≥48dB (AGC OFF)
Minimum illumination: 0 LUX
Backlight compensation: Auto
White Balance: Auto Tracing
Auto Gain Control: Automatic
Night vision: Yes
Video Output: 1.0Vp-p. 1.5ω. RCA Connector
Synchronous System: International Synchronization
work Temperature: - 20°C ~ +60°C
Power Requirement : DC 12 V
Focal distances: 30mm to infinite
Weight: Approx. 300g

Package

1 x 7 Inch 4 CH Camera Video Quad Processor TFT LCD Color Monitor with Audio function
1 x Functional Cable
1 x Bracket
1 x Remote Controller
4 x Car CCD reversing camera
