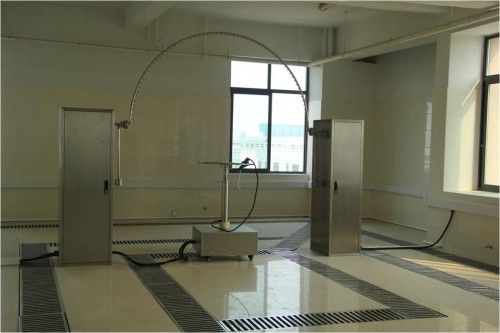

IEC60529 IPX3 / IPX4 rain test device placed tube

use:
Rain test device placed tube according to IEC60529 / GB7000.1-2002 / GB10485-89 / GB4208-93 / GB / T4942 / IEC60529 and other standards designed strictly for evaluation of electronic and electrical products, sealed housing member or rain test during the test can ensure that the test device (IPX3, IPX4) equipment and components capable of normal operation .

Technical Parameters:
Power : AC220V, 50Hz
Pendulum tube diameter : diameter 19mm, thickness 2mm.
Pendulum tube material : R800 (304 stainless steel )
Drip hole diameter : 0.4mm
Blowhole angle : 120 ° (IPX3), 180 ° (IPX4)
Pendulum tube angle : IPX3: 120 (± 60 °); IPX4: 360 (± 180 °)
Pendulum tube Speed: once per swing (2 * 120 degrees) time IPX3 trial for 4s ( approx.); Once every swing (2 * 180 degrees) time of 12s ( approximately ) when IPX4 test .
Water flow rate : 1 ~ 10L / min, adjustable
Test time : 0-999mins, adjustable
Rotary table diameter : 700mm
Rotary table speed : 1-5 rpm
Tilt angle : 15 °
The turntable rotation angle : 900 ° ( continuous rotation)
Manometer : 0 ~ 0.25MPa
