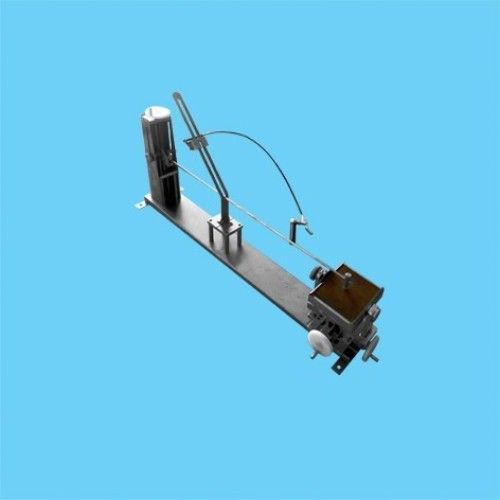

Charpy impact test device

product description:

This device is in line with GB2099-2008 Figure 22, IEC60884 Figure 22, GB2423. IEC68-2-75Eha And other standard requirements for test equipment for household and similar Plugs and sockets and switches and other electrical accessories for mechanical strength test purposes ; Installation support Frame can move around, attack angle adjustable .

Shock Energy: Low energy (1J hereinafter, model CX-BC1); high-energy (2J, model CX-BC2):

The shock element equivalent quality : Low Energy: 200 g, 250 g; high energy : 500 grams ;

. Pendulum length : 1000mm;

Shock height : 56mm, 80m, 100mm, 140mm, 150mm, 200mm 250mm, 280mm, 400mm..
