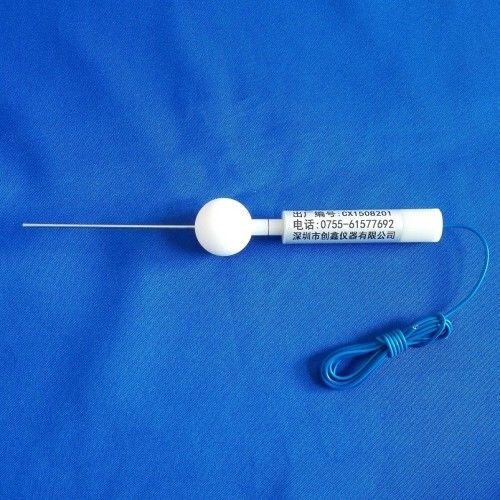

IP3X test probe
product description:
Compliance with IEC61032 Figure 2 test with C, IEC60529IP3, GB4208IP3, GB / T16842 test with C, GB8898, IEC60065, IEC60598, GB7000 and other standards. For preventing hand-tool accessible protection test.

Technical Parameters:
1, probe length : 100mm
2, probe diameters : 2.5mm
3, the stall ball diameter : 35mm
4, the handle diameter : 10mm
5, handle length : 100mm
6, according to IEC61032 Figure 3 (Test probe C), GB / T4208-2008 Table 6 ( first characteristic numeral 3 ) .
• can be ordered with 3 ± 0.3N thrust.
