IPX3 anti-spray test equipment | IPX4 splash test device | IP rain test device

Handheld Anti Drenching / splash water test equipment is based on the relevant provisions of the standard IEC60529IPX4, GB4208IPX4 other standards production, is used to test the function of the appliance with anti-rain water or electrical performance testing.

Performance parameters

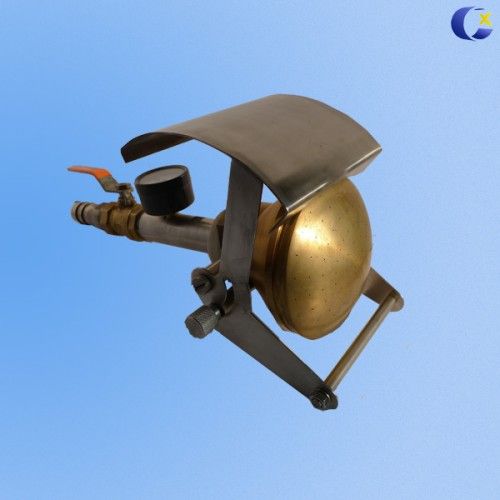

Anti-water spray / splash handheld test device

parameter:

1, nozzle diameter: diameter 102;

2, nozzle diameter: diameter of 100;

3, the nozzle opening surface radian: 78 °;

4, nozzle diameter: diameter 0.5, a total of 121 holes, one in the middle, which is a total of 12 laps hole pitch 30 °, out of a total of four laps 24 holes, pitch 15 °;

5, Material: flapper: stainless steel; nozzle: Brass; other parts: 304 stainless steel;

6, with a connecting valve, pressure gauge and 3 m pipes.

The main purpose of the anti-watering handheld test device is mainly used to test the function of the appliance with anti-rain water or electrical performance testing.

Caution anti watering handheld test equipment, handheld test device splash water, our company will send professional and technical personnel training and guidance.
