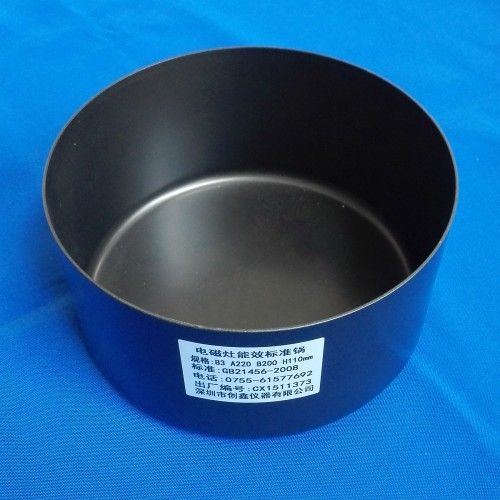

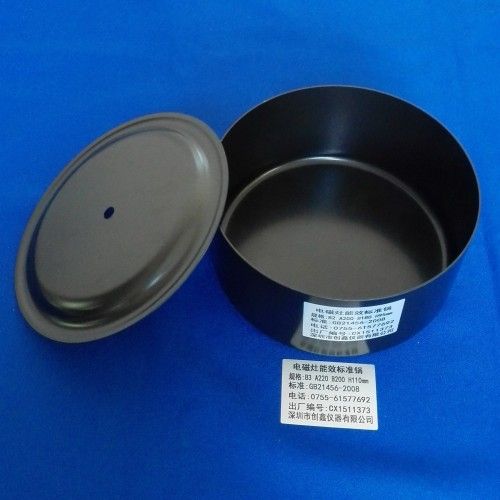

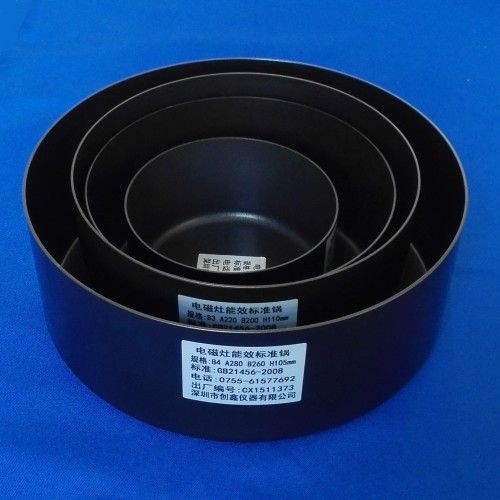

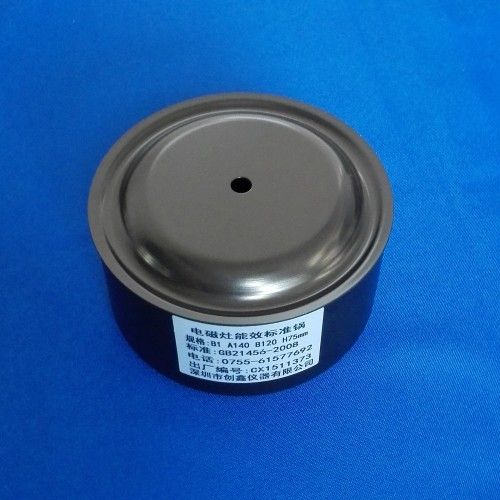

Pot cooker energy efficiency standards

Plot:

The company sells pot cookers energy efficiency standards are based on GB21456-2008 ( household cookers limited value of energy efficiency and energy efficiency rating ) standard requirements for flat pot and lid production is mainly used for the evaluation of energy efficiency cookers limited value and energy efficiency grade test equipment.

skills requirement:

1 pot and lid material is mainly Q235 Carbon content (0.08 % ;

. 2 lid material thickness of 1mm, pot body thickness 't' see attached ;

3 at the bottom of the pot body can not be outwardly convex, concave bottom maximum of 0.6% times the effective diameter ;

4 pot body and the lid surface to be smooth, and light anti-rust surface treatment for sand ;

Code

A / mm

B / mm

H / mm

t / mm

Volume /L

B1

Φ 140

Φ 120

75

1.5

1

B2

Φ 200

Φ 180

95

1.5

3

B3

Φ 220

Φ 200

110

1.5

4

B4

Φ 280

Φ 260

105

2.0

6

b. pot size

Code

A / mm

B / mm

C / mm

t / mm

B1

Φ 82

Φ 126

Φ 146

1.0

B2

Φ 142

Φ 186

Φ 206

1.0

B3

Φ 162

Φ 206

Φ 226

1.0

B4

Φ 222

Φ 266

Φ 286

1.0
