Slant bed CNC lathe is a high-precision, high-efficiency automated machine tools. Equipped with multi-station turret or power turret machine with a wide range of add on process performance, it can be processed straight cylinder, slash cylinder, and each arc kinds of thread, groove, worm and other complex parts, with linear interpolation, circular interpolation variety of compensation, and played a good effect in the processing of complex parts in mass production. This machine is suitable for shaft, disc-type parts high-efficiency precision machining.

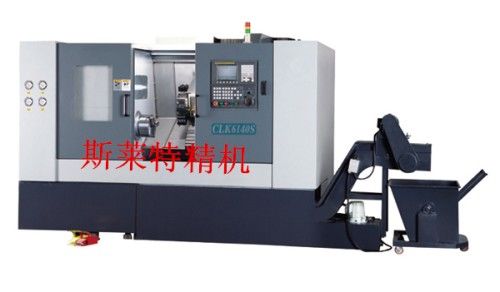

CLK6140S slant bed CNC lathe oblique guide has the following characteristics:

Heavy body of high strength cast iron bred alloy resin, many aging treatment to eliminate stress.

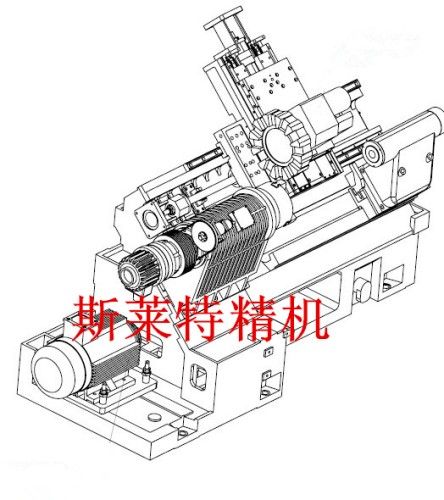

Body with 45 ° high-strength cast iron slant bed, good stability and strong machine rigidity, chip and smooth.

High rigidity roller guides, precision grinding stage ball screw drive, high positioning precision machining.

Taiwan high-speed high-precision spindle unit rigidity, heat distortion is small, strong stability, maintenance-free.

Taiwan imports of hydraulic turret 10 stations, accurate tool change speed.

Taiwan hydraulic chuck and hydraulic tailstock, improve processing efficiency.

CLK6140S slant bed CNC lathe parameters:

Bed Maximum turning diameter: 450mm

The maximum machining diameter: 430mm

Turret largest processing diameter: 300

Max length: 500mm

X Axis travel 225mm

Z Axis travel 520mm

Distance between centers: 600mm

Hydraulic chuck specifications: A2-8 8 Inch

Main motor power: 7.5 / 11KW

Spindle speed: 4500rpm

Spindle through-hole diameter: 62mm

Bar port diameter: 50mm

X , Z Axis motor Connection: Direct

Turret: Hydraulic turret Taiwan

Knife digits: 10 Station

Standard shank size: 20 * 20mm

Maximum boring bar size: 25

Tailstock sleeve diameter: 75

Sleeve travel: 120mm

Tailstock stroke: 700mm

Tailstock taper: Morse 5 number

Repeat positioning accuracy: 0.006

Net weight: 4T
