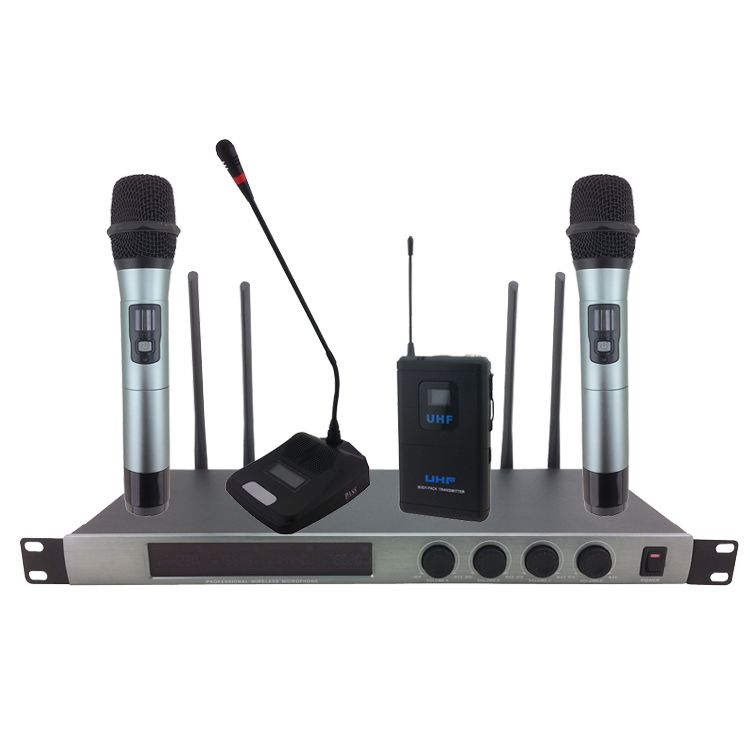

MK-168 wireless microphone system parameters

Operating frequency: 532-960Hz can be equipped with

Modulation: FM (Extended digital compression)

Frequency stability: ± 0.005%

Maximum screen shift: ± 45KHz

Dynamic Range: 96dB

Working distance: 100M (open area)

IF: Digital compression expansion

Sensitivity: 12dBuV

Transmitter parameters

Built-in antenna

Output work rate: 10mw Adjustable

Spurious Rejection: -60dB

Battery life: about 10 hours during normal launch

Power Supply: 1.5V cells 2, quiet place 5 minutes automatic shutdown to save battery reaches
