ATSC TV Box Onlyworking for USA/Mexico/Canada North America .

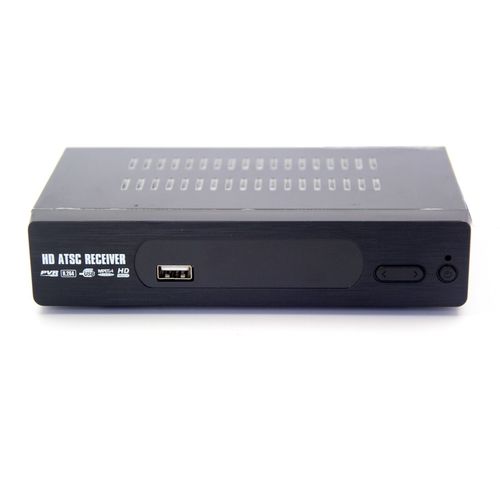

ATSC TV BOX DIGITAL CONVERTOR is a digital converter box which converts ATSC digitalbroadcast to your analog TV. The built-in Media Player function allow user toplay back video files via USB connection.
Power AC100~240V 50Hz/60Hz
Demodulation Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)
ATSC NTIA and 8VSB Standard
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
Guard Interval: 1/4,1/8,1/16,1/32,1/128
FFT Mode: 2K, 8K, 32K
RF input frequency: 54-803MHz
Bandwith: 6MHz
Input level: -83 - -5dBm
Video Decoding Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
MediaCode:avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Sortware Features USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver
Converts digital broadcast to your analog TV

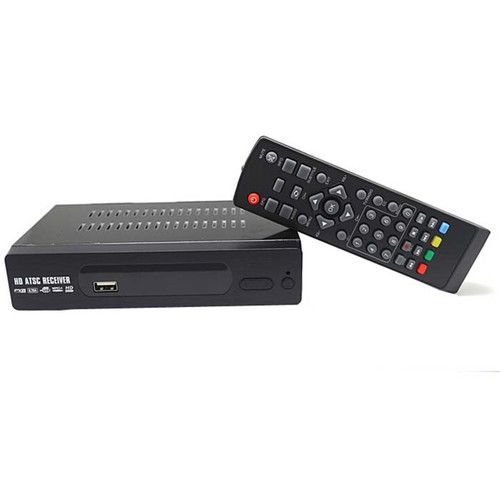

By remote control to choose the RF 3/4 ch output
