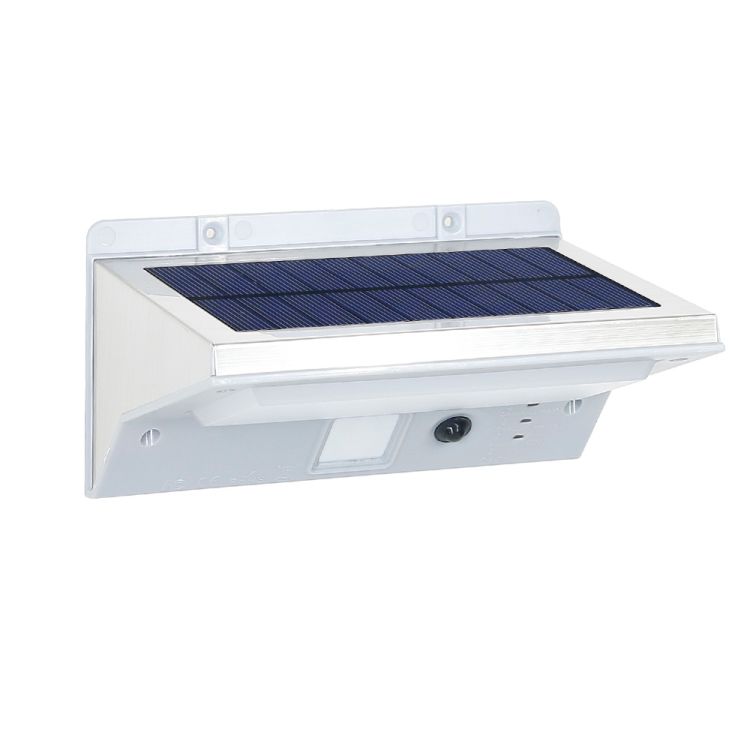

NEW 21 LED PIR Motion Sensor Solar Wall Light 330Lumens Ultra Brightness

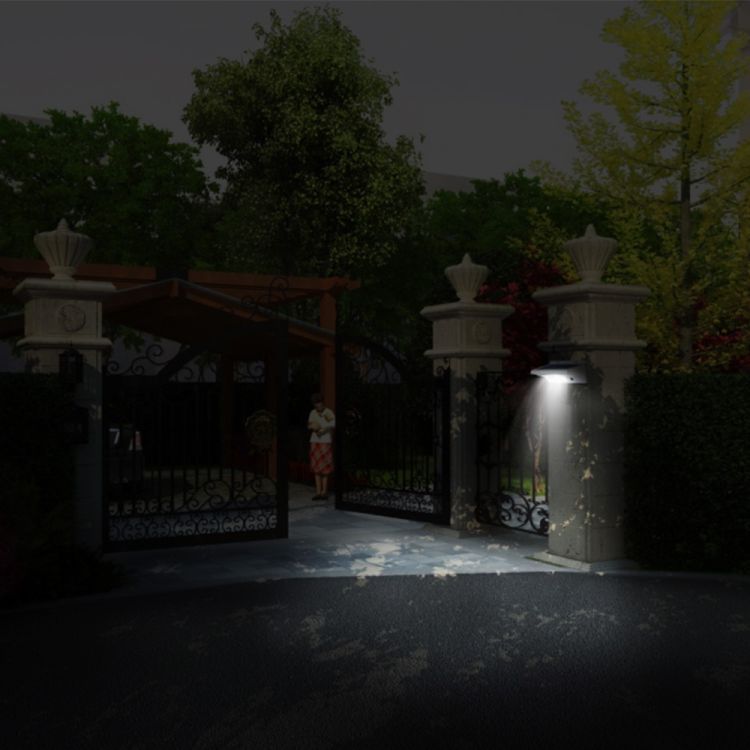

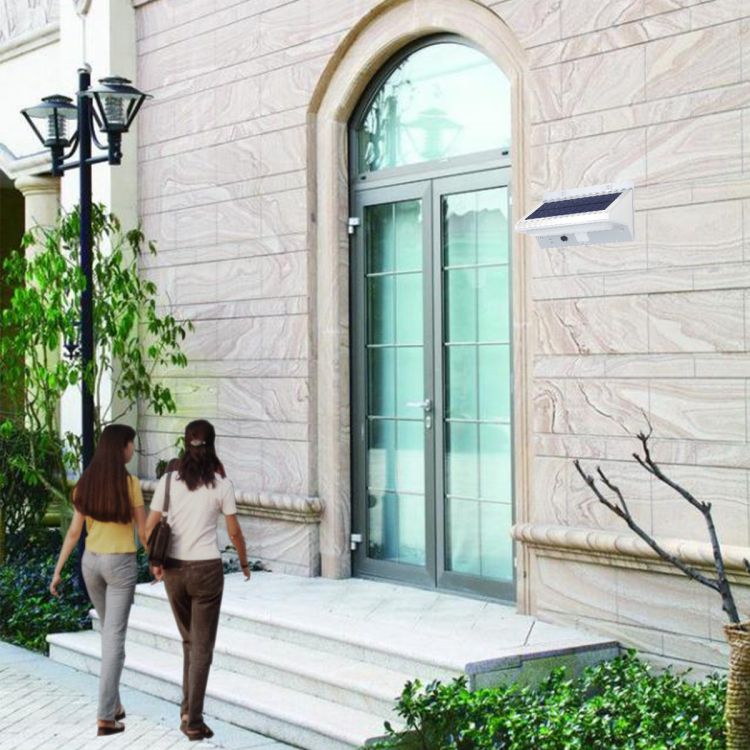

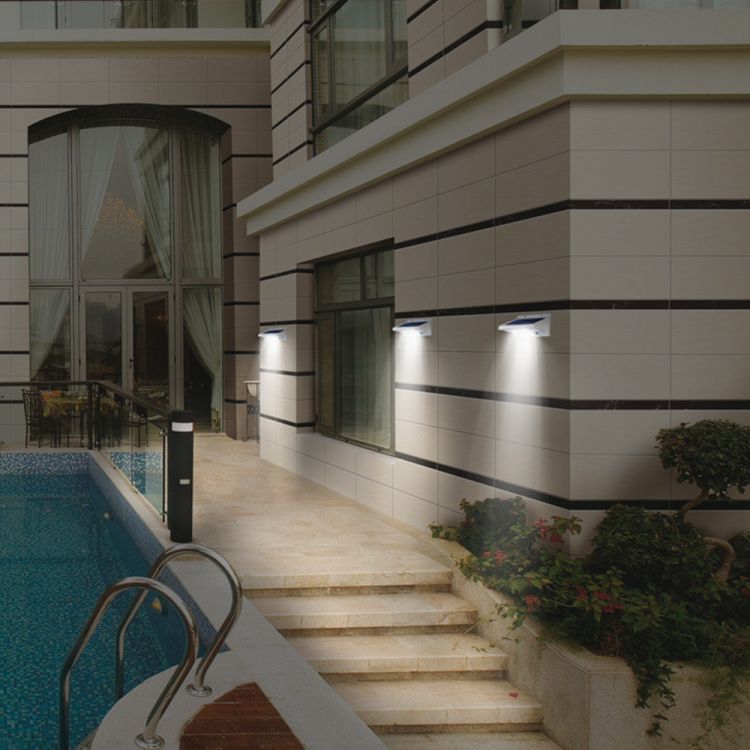

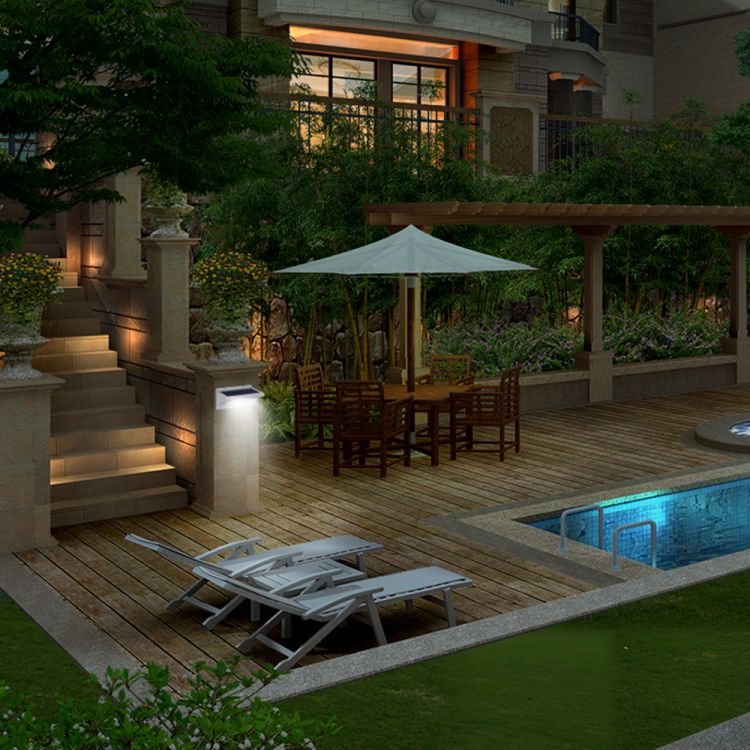

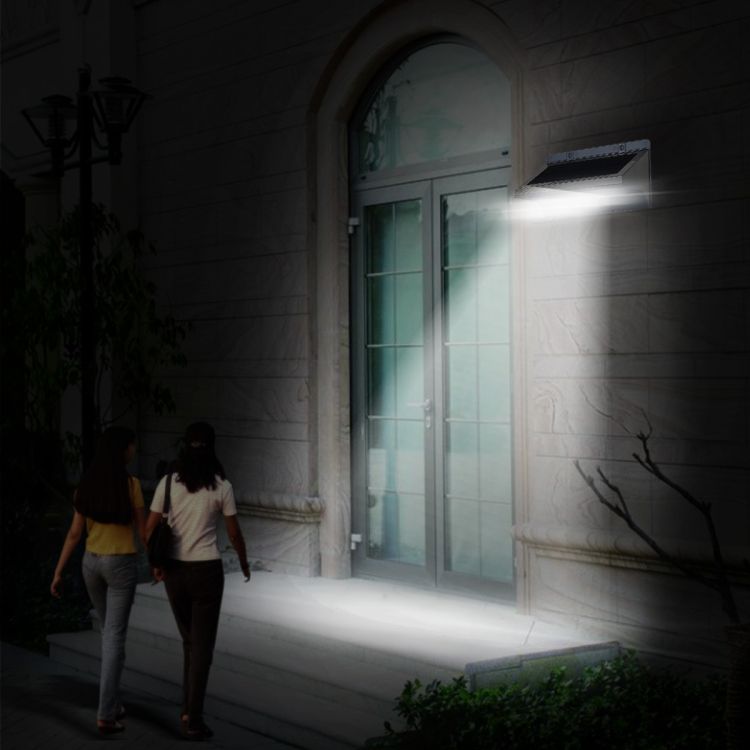

This product is a energy saving motion activated solar wall light. By using solar power and Lithium battery technology, this solar light it is widely used for entrance, corridors, passages, courtyard, stairways, garages etc. It is easy to setup and no wire needed.

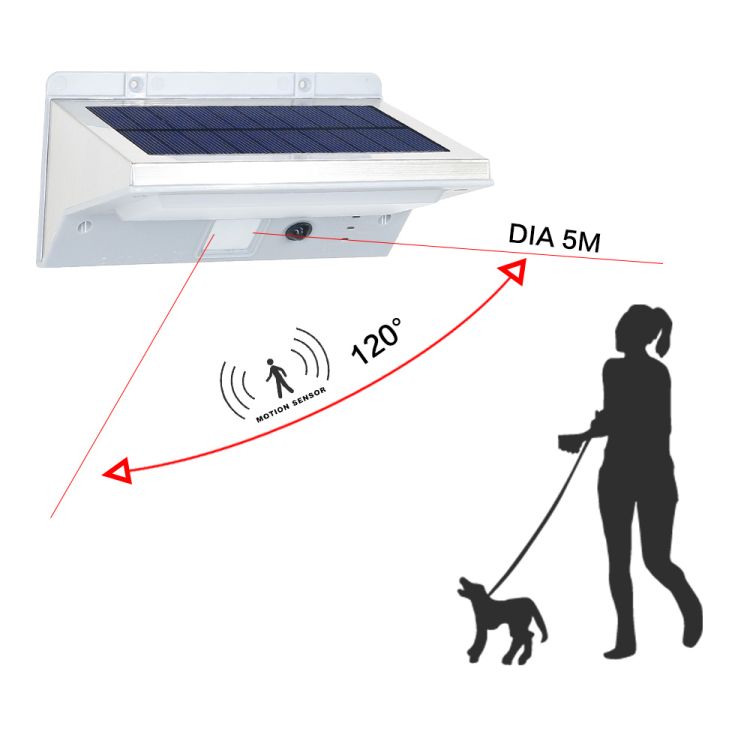

During the day, the solar panel fitted on top of each light will charge the battery inside. At dust, the 21LEDs will activate automatically using the stored energy from the sun. The PIR(Passive Infrared) technology will enable the LEDs to turn to maximum brightness (250-330Lumen) when motion is detected. It brings a lot safety, security and convenience for your home and garden.

Function

1. This product has a light sensor, it turns ON and OFF automatically everyday. While the surrounding light is over 100LUX, the product begins to charge by itself. While the surrounding light is below 100-10LUX, the light turns on automatically.

2. Mulit-function, this product has 3 modes, press and release the switch once to change the mode in turn. Three indicator lights correspond to 3 working mode.

(1) Green indicator light turns on: Motion sensor plus Dim Light Mode. Dim light (about 20LM) is always on through out the night. While people come close to the light, motion sensor is triggered and become very bright (250LM) and last up to 37 seconds, and then turn to dim light. Motion triggers maximum 160 times every night.

(2) Blue indicator light turns on: Motion Sensor Mode. When people come close to the light, it turn on very bright gradually (about 330LM) and last 37 seconds. Without motion, the light turn off.

(3) Red indicator light turns on: Always on Mode, Strong light (about 80LM) for the first 5 Hours, dim light (about 40LM) for the next hours.

3. This product features 21 bright LEDs, lifetime is over 50,000 hours.

4. This product is powered by one Lithium battery #18650 3.7V 2600mAh, Replace the battery after they run out.

Installation

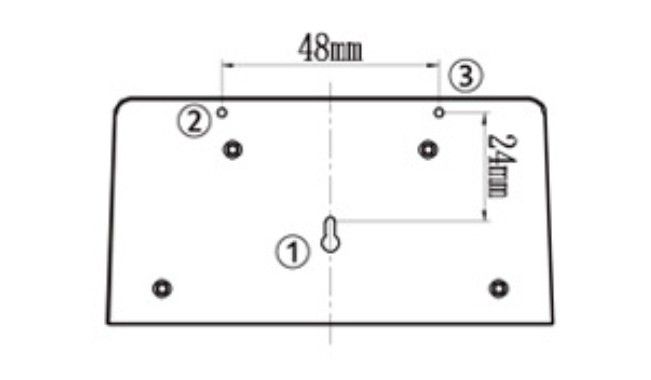

1. Choose the desired place, drill 3 holes as per the dimension of the above picture. Put the plastic anchors in.

2. First insert the screw into the wall and leave the screw 5-8mm to project from the surface. Fix the light to the surface by hooking the keyhole 1 at the back cover over the mounted screw.

3. Then mount the screws 2 and 3 from the front.

Maintenance and attention

1. Before use the solar light for the first tiime, leave the light under direct sunlight for about 36-48 hours. The light will achieve optimum light output after the enormous exposure to the sunlight.

2. Please keep the surface of the solar panel clean, to make sure the product works at it's best performance.ance.

3. it is important to install the light in a location that receive full sunlight each day. away from the shade caused by trees, buildings etc. Shady locations will not allow the battery to be fully charged and will reduce the hours of night time light.

4. This solar light include a built-in photo sensor, which detects the level of surrounding natural light and controls when the light will automatically switch on and off. The solar light should be placed at least 2 meters apart from on another and away from other nikght time lights sources as this might keep the solar lights from automatically turning on at dusk.

5. The performance of the solar light is dependent on the geographical location, weather conditions and seasonal sunlight availability. On cloudy days and during winter, the solar light will not receive as much direct sunlight, resulting in reduced brightness and reduced operating time.
