Product Description

1. NRF24L01P + PA + LNA Division I for the ultra-long-distance data transmission specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free, can be point-to-point applications, can also be composed of a star network,

2. NRF24L01P + PA + LNA wireless module core Norway NORDIC company's latest high-performance wireless

Digital transmission chip NRF24L01 +, with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF switches, bandpass filters, etc., makes effective communication distance greatly expand.

3. RF part, the Secretary has done a lot of optimization matching debugging, the emission efficiency to achieve the highest harmonic minimum

Makes NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches a minimum, while not susceptible to interference from other devices, greatly Uploader

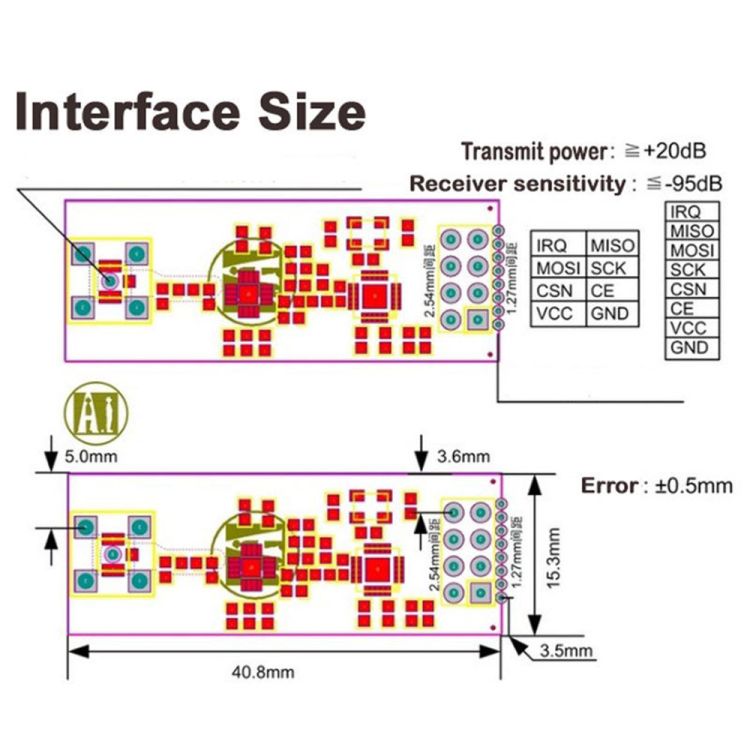

4. High stability of the work. NRF24L01P + PA + LNA wireless module integration is extremely high, the size of only 41mm * 15.5mm, convenient embedded In any tight space products, customers can increase an MCU through the SPI port to control NRF24L01P + PA + LNA

5. Wireless module to complete the design of ultra-long-range wireless data transmission system completely eliminates the need for the RF part of the R & D, Slash R & D spending and shorten the development cycle

Specifications:

Voltage: 3-3.6V

Max output power: +20 dBm

Working current in transmit mode: 115mA

Working current in receiver mode: 45mA

Current in mode: 4.2uA

Operating temperature: -20-70 degree

Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode

PA growth: 20dB

LAN growth: 10dB

LAN noise figure: 2.6dB

Antenna growth: 2dBI

2M rate: 520m

Package Included:

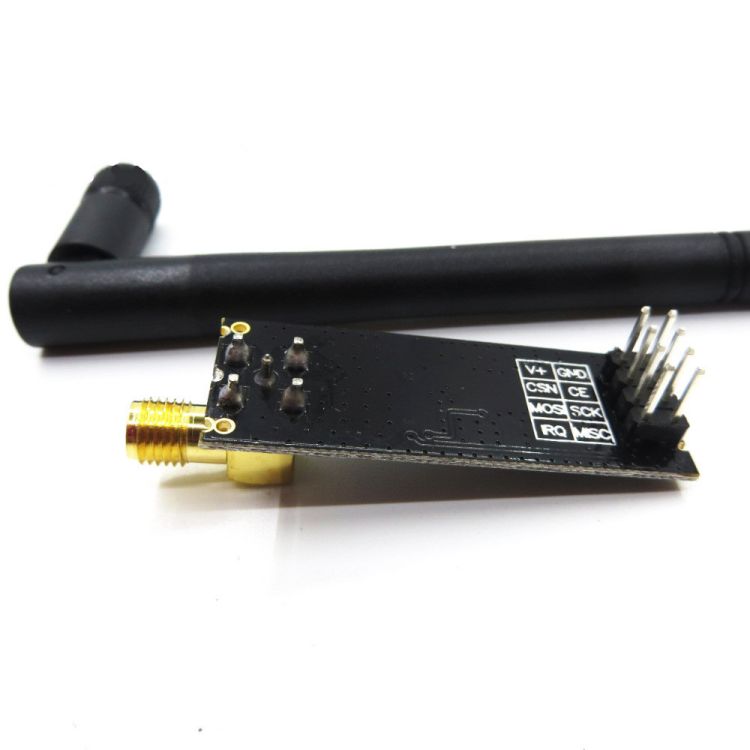

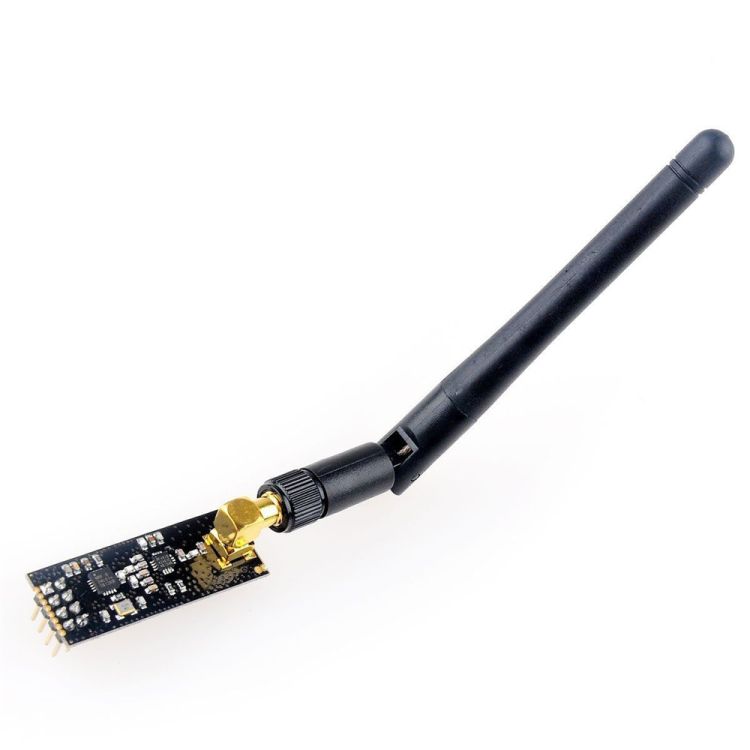

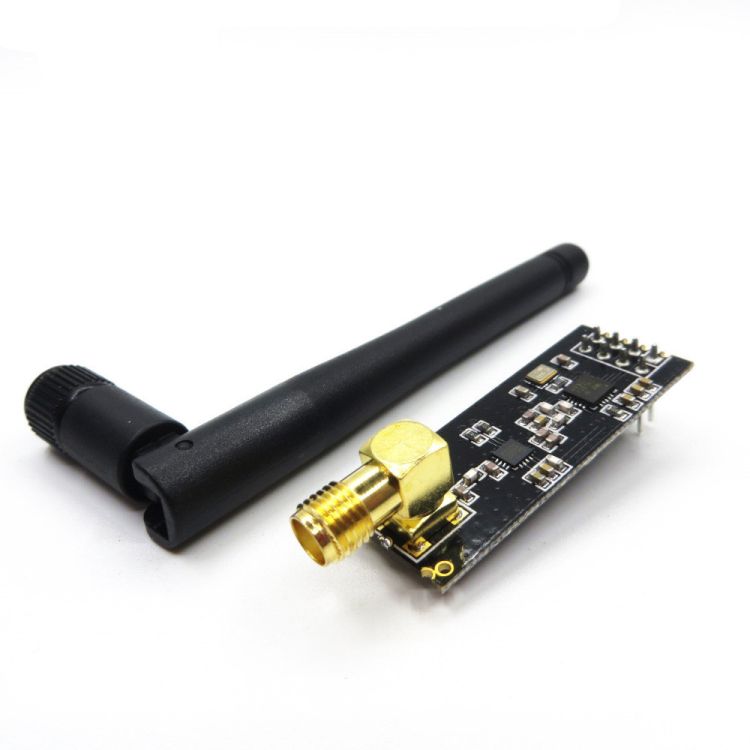

1 * NRF24L01+PA+LNA Wireless Modules

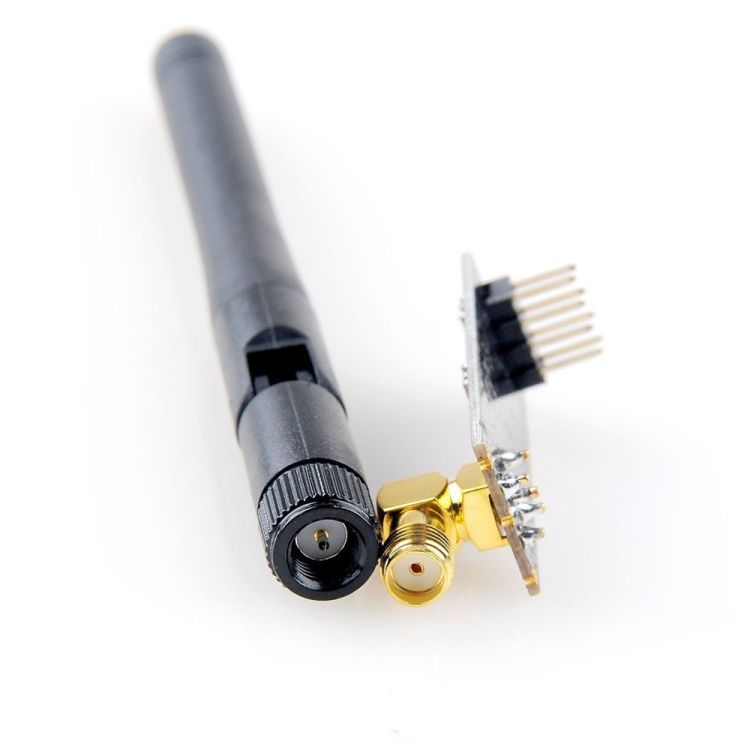

1 * Antenna
