Product application and features

JIAROUKABEL is a new generation of highly flexible control and connection cable for continuous bending and moving installations in conventional mechanical stress chains or portable machine parts with a bending radius as small as 7.5x diameter; Used in wet industrial environment, it can be used for open-air installation and UV resistance within the applicable operating temperature range.

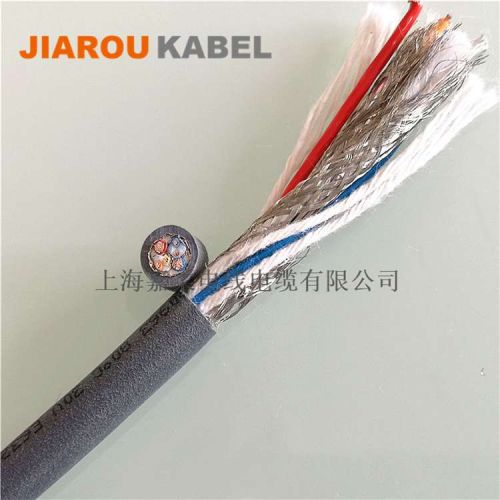

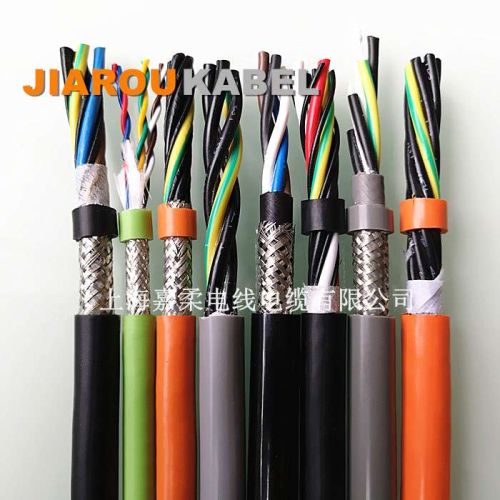

The shielded towline cable adopts a fine tinned wire high-density warp and weft braided cable body for anti-electromagnetic interference requirements.

Suitable for: measuring and control lines, electrical equipment engineering power lines, assembly and robotics, CNC machine tool machinery automation, wood stone glass and other carving machinery, automotive manufacturing lifting equipment.

Product features: Low-viscosity surface, non-blocking; high-quality elastomer insulation and sheathing material, the cable outer diameter is greatly reduced, saving the installation space of the cable in the drag chain; Jrflex towline cable design life in the towline is > 5 million cycles of bending;

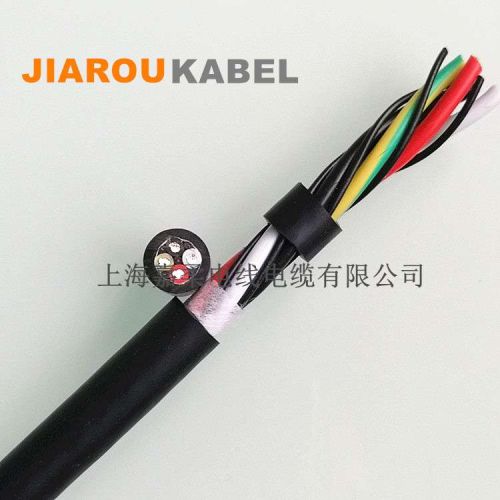

Cable structure: Conductor multi-strand fine oxygen-free bare copper wire, flexible twist-proof bundle; Insulation high mechanical elastomer material insulation; Cable optimization cable pitch flexible twist-proof layer twisting; Non-woven material coating; Elastomeric nitrile material, black (RAL9001) grey (RAL7001)

Technical Parameters

●Bending radius

Mobile installation: 7.5x cable outer diameter

Fixed installation: 4x cable outer diameter

●Use temperature range (can produce more suitable operating temperature according to actual working conditions)

Mobile installation: -10°C to +70°C

Fixed installation: -20°C to +80°C

●Conductor structure

VDE 0295/IEC 60228 Class 6 conductor, using multiple strands of stranded bare copper wire (pre-specified tinplate)

●core mark

< 0.5mm²: 黑,棕,蓝,紫,粉红,橙

≥0.5mm2: Black core white number, 3 or more with yellow/green grounding protection

G=The yellow/green two-color grounding wire mark

X=No yellow/green two-color grounding wire identification

●Working voltage Uo/U: 300/300V~450/750V

● Test voltage: 3000V

●Insulation resistance: > 20 GΩxcm

●Flame retardancy Refer to IEC60332-1-2+EN60332-1-2

● Cable certification CE RoHS

●Order instructions

G=with yellow/green two-color grounding mark, X=no yellow/green two-color grounding mark

Standard package length (50, 100, 200, 500, 1000m) No cutting costs

Less than 30kg package, more than 30kg disk

Please specify the length requirement when ordering (eg 1x500m/disc or 5x100m/volume)
