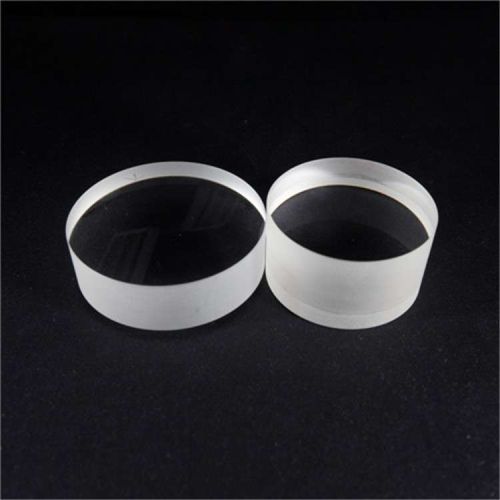

The optical elements of different cemented lens composed of two kinds of refractive index, which are glued together to provide a positive focal length of the imaging lens. A cemented lens of the optical axis chromatic aberration and the spherical aberration is corrected, making it suitable for broadband optical cemented lens. Available focal length and a wide range of diameters. Please ask size and focus are needed, because we can offer a variety of optical cemented lens. Our main products are prism including a triangular prism, pentagonal prism, roof prism. Such as plano-convex lenses, plano-concave, biconvex, biconcave. All of these products have different sizes, we can customize according to drawings and samples cemented lens, a wide range of focal lengths and diameters are available. Please ask size and focus are needed, because we can offer a variety of optical lens glued

Focal length: ± 5mm - ± 1000mm ± 1%
OD: 5mm - 200mm ± 0.1mm
Center thickness tolerance: ± 0.05mm
Center deviation: ≤ 3 min
Surface accuracy: λ / 4 @
Surface quality: 40/20
Effective aperture: 90%
Coating: 190-380 nanometer UV antireflection coating 2, 400-1100 nanometers VIS-NIR antireflection film (532 nm antireflection film single-point, two-point 532 + 1064 nm antireflection film, antireflection single point 808, 1064 single point AR film), the region and bandwidth antireflection coating,
IR antireflection film: 1560 Nano AR coating, AR 3-5 microns, 8-12 and 7-14 microns AR film
High dielectric reflecting film: 1,355 nm / 532 nm / 635 nm / 808 nm / 1064 nm single-point, two-point, three-point laser reflection film
