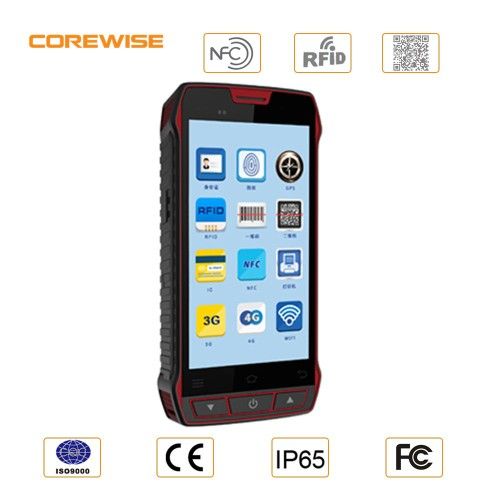

5 Inch Rugged 1.2GHz Android Handheld PDA with UHF RFID Barcode

5 Inch Rugged 1.2GHz Android Handheld PDA with UHF RFID Barcode

230-699 USD

add to cart
Model NO. CFON640
Operation System Android
Rear Camera Pixel 8MP
ROM Capacity 8GB
Battery Capacity 1501mAh-2000mAh
Screen Narrow Border ﹥6mmt;6mm
Display Color 4096 Color
Storage Expansion Supported
Screen 5 Inch
Color Black
Reliability Mtbf No Less Than 10000 Hours
Contact IC Card Compatible with ISO 7816-3 and EMV 4.2
Camera Front 2.0m and Rear 8.0m Pixels, Auto Focus with F
Specification 220 x 132 x 23(mm) (8.7' x 5.2' x 0.9')uot; x 0.9")quot;)
Screen Size 3.6-4.0"
Front Camera Pixel 2.01MP-5MP
RAM Capacity 1GB
Main Screen Resolution 1280*720
Screen Material TFT
Data interface Mini USB
Design Bar
Display Type TFT
Screen Resolution 800X480
Ruggedness IP65, Waterproof, Dustproof, Shockproof
Contactless IC Card ISO/IEC 14443 Type a/B
WiFi IEEE 802.11b/G/N
Trademark Corewise
Origin Jiangsu, China
5 Inch Rugged 1.2GHz Android Handheld PDA with UHF RFID Barcode
1: 5 inch 4G;
2: HF RFID / NFC Reader;
3: Fingerprint Reader.
This is a smart mobile phone for industrial use with fingerprint sensor compatible with HF13.56MHz, LF125KHz, UHF840-960MHz, live fingerprint sensor, and 5mga-pixel camera;
Data Transmission: Integrated 4G, Bluetooth, RS-232 communication, RFID, and WIFI for data transmission in real -time; We offer the free SDK, open software platform for secondary application development and customized programs and Integrated keyboard, graphic LTD, battery, and internal GPS positioning;
Application Cases: ,
Finherprint access control(door lock, POS, ect)
Fingerprint identity authorization(timing/attendance, examination permission, bank escort, ect)
RFID read/write smart cards(ID cards, finance cards, e-wallet, etc)
Nanjing Corewise Smart Technology Inc. Is a leading manufacturer of smart terminals,
Corewise is a high-tech enterprise and specialized in R&D and manufacture of smart terminal. E. G. Tablet pc, barcode scanner, RFID smart card writer/reader, biometric fingerprint sensor, Bluetooth thermal printers, police-use BTS, etc. Integrated with 4G smart phone features, these 'all-in-one' terminals with superior performance can be utilized in a wide range of scenarios. Google Android downloadable apps or tailor-made software can work in conjunction with our powerful terminals to create most controllable and versatile solutions to bring human, financial, material resources as well as vehicles under absolute control.solute control.trol.
Being at the very forefront of technical development, Corewise provide quality deliverables made of the highest industrial grade materials, with shortest lead time and sound after-sale services. Corewise help clients to deliver tangible and supremely effective solutions with sustainability and optimum effects to explore local market and expand geographic reach with product availability and backed guarantee.
Corewise is now headquartered (R&D) with product lines (PLs) in Shenzhen focusing on procurement & producing. Our annual turnover is around 15 million U. S. Dollars.Product Descriptionescriptionscription

General Specifications
Operation System Google Android 6.0
CPU Qualcomm 8909, 1.2Ghz, Quad Core
Memory 1GB RAM, 8GB ROM
Extension Storage T-Flash/Micro SD Card, up to 32GB
Networks WCDMA 850/2100Mhz
CDMA 800Mhz
GSM 850/900/1800/1900Mhz
4G LTE
Display 5' HD LCD, Capacitive Touch Screen, Resolution 1280*72080*720
Camera Front 2.0M and Rear 8.0M Pixels, Auto Focus with Flash
Wireless Communication
GPS Integrated, 10m
WiFi IEEE 802.11b/g/n
Bluetooth BT 4.0 with A2DP
Optional Parts
UHF RFID ISO 18000-6C, 0-2m
NFC Scanner Supported
Contact IC Card Compatible with ISO 7816-3 and EMV 4.2
Contactless IC Card ISO/IEC 14443 Type A/B
Fingerprint Reader Capacitive Sensor, 508 DPI
Barcode Scanner (1D) UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes
Barcode Scanner (2D) PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Physical Layer Parameter
Dimensions 156.8*79.5*22.2mm
Weight 400g
PSAM 2 slots
Battery 3.7V, 3000mAh
USB Mini-USB 10pin
Charger DC 5.5V 1.2A
Headphone Supported, 3.5mm
Speaker supported
Ruggedness IP65, waterproof, dustproof, shockproof
Reliability MTBF no less than 10000 hours
Temperature -20ºC~+70ºC~+70ºCrdm;C~+70ºC

Our Services
After - Sales Service:
1. One-year warranty:
If with nonhuman factors quality problems in two years, Corewise assures you the repair, maintenance or replacement for free.
If with damages caused by users, you need to purchase the accessories for the repair, maintenance or replacement.
If you pay 8% more per piece, with the warranty of one-year more.
2. After the order, Corewise provides you 2% of the accessories in extra, you can select the type and quantity according to the requirements.
3. Corewise and the client undertake respectively 50% of the freight, you are in charge of the one back to China, and we, of the one delivered to you.
4. Corewise ensures to provide the same product during the continuous three years, with the same accessories. But the mainboard or the chip might be changed due to the upgrade process.
FAQ:
1.Q:Are you manufacturer?
A:Yes.Our company headquarters is located in Nanjing of China, factory in shenzhen.
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
3.Q:Does the device have the language default as English?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
4.Q:Can your device install the Android Apps that our customers provide?
A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
If you have any other question about our products,please don't hesitate to contact us.We will be more than happy to serve you.
