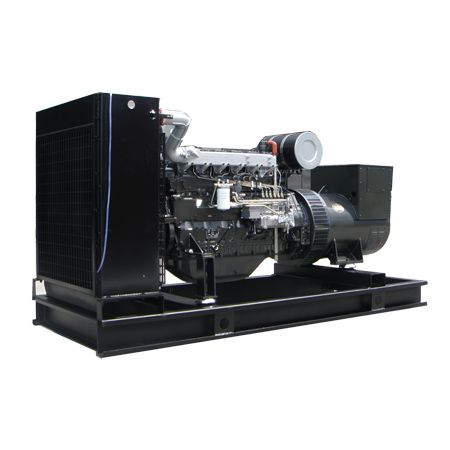

Stock for Sale Googol 360kw Diesel Generator 450kVA
| Model NO. | HGM500 |
| Installation Method | Fixed |
| Cooling Method | Water Cooling |
| Speed | HSS |
| Usage | Common Units |
| Excitation Mode | AC Rotating Exciter |
| Warranty | 1 Year or 1000 Working Hours |
| Specification | ISO8528 |
| HS Code | 8502120000 |
| Type | Self-Starting Diesel Generator |
| Stroke | Four Stroke |
| Output Type | AC Three Phase |
| Conditions of Use | Land Use |
| Landuse Type of Unit | Low Noise Automation Type |
| Certificates | Ce, ISO, SGS, TUV, etc |
| Trademark | HONNY |
| Origin | China |
HGM500 Googol Series Diesel Generator, 50Hz, 1500rpm, 400V/230V adjustable
Performance Feature
Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operating, installation and maintenance.
World most famous brand diesel engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
STANDARD CONTROL SYSTEM: GCS6410 AMF
Mains 3 phases VPh-N L1-N L2-N L3-N
Mains 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Mains frequency Hz (L1)
Gen 3 phases VPh-N L1-N L2-N L3-N
Gen 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Gen 3 phases current I1 I2 I3
Gen frequency Hz (L1)
Gen total apparent power ∑ Aum; Aum; A
Gen total active power ∑ Pum; Pum; P
Gen power factor PF (AV)
Genset speed RPM (signal from generator voltage frequency)
Engine oil pressure Bar (signal from engine P-sensor)
Engine coolant temperature (signal from engine T-sensor)
Battery voltage VDC
Genset Running hour Hour
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Optional Accessory
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS and paralleling system, Soundproof Canopy and Moving Trailer.
Performance Feature
Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operating, installation and maintenance.
World most famous brand diesel engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
STANDARD CONTROL SYSTEM: GCS6410 AMF
Mains 3 phases VPh-N L1-N L2-N L3-N
Mains 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Mains frequency Hz (L1)
Gen 3 phases VPh-N L1-N L2-N L3-N
Gen 3 phases VPh-pH L1-L2 L2-L3 L3-L1
Gen 3 phases current I1 I2 I3
Gen frequency Hz (L1)
Gen total apparent power ∑ Aum; Aum; A
Gen total active power ∑ Pum; Pum; P
Gen power factor PF (AV)
Genset speed RPM (signal from generator voltage frequency)
Engine oil pressure Bar (signal from engine P-sensor)
Engine coolant temperature (signal from engine T-sensor)
Battery voltage VDC
Genset Running hour Hour
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Optional Accessory
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS and paralleling system, Soundproof Canopy and Moving Trailer.
| Generator set | Genset Model | HGM500 | |
| Rating Power (kW/kVA) | 360/450 | ||
| Standby Power(kW/kVA) | 400/500 | ||
| System Voltage | 400/230 | ||
| Rating Ammeter(A) | 649 | ||
| Diesel engine | General data | Engine model | PTAA890-G1 |
| Prime Power(kW) | 403 | ||
| Standby Power(kW) | 448 | ||
| number of Cylinder & Configurationationation | 8 cylinders V-type | ||
| Bore X Stroke (mm) | 128X142 | ||
| Displacement(l) | 14.6 | ||
| Compression Ratio | 15.5:1 | ||
| Governor type | Electronic governor | ||
| Rated speed(rpm) | 1500 | ||
| Exhaust system | Exhaust gas flow(m³/min);/min);/min) | 86 | |
| Exhaust gas temperature(ºC)rdm;C)rdm;C) | 605 | ||
| Max. exhaust back pressure(kPa) | 10 | ||
| Air intake system | Aspiration Type | Turbocharged & After cooledooledooled | |
| Max. intake depression(mbar) | 6 | ||
| Combustion air Volume(m³/min);/min);/min) | 43 | ||
| Fuel system | Rating Fuel Consumption(l/h) | 95 | |
| 75% full Fuel Consumption(l/h) | 71 | ||
| Lubrication system | Total oil capacity(l) | 40 | |
| Max permissible oil temp (ºC)rdm;C)rdm;C) | 110 | ||
| Oil pressure at rated rpm(KPA) | 240-350 | ||
| Cooling system | Total Coolant capacity(l) | 80 | |
| Max. temperature of coolant(ºC)rdm;C)rdm;C) | 100 | ||
| Fan cooling air flow(m³/min);/min);/min) | 550 | ||
| Alternator | Alternator model | MGA315-360-4S | |
| Rating Voltage(V) | 400/230 | ||
| Rating Capacity(KW/KVA) | 360/450 | ||
| Eff.% | 94.2% | ||
| Power Factor | 0.8 | ||
| Exciting type | Brushless self-exciter AVR | ||
| Voltage regulation | ±1%lusmn;1%lusmn;1% | ||
| No. of Phase | 3 phase 4 wire | ||
| Enclosure Class | IP121 | ||
| Class of Insulation | H | ||
| Battery | Rating Capacity(AH) | 2X150AH 12V | |
| Dimension | Generator set dimension (LXWXH) | 3200x1350x1650 | |
| Weight | Generator set Net Weight (kg) | 2760 | |
