Bs5000, VDE0530, NEMA Mg1-32, IEC34, IEC60034, As1
Engine Type
Doosan, Cummins, Man, Googol
Controller
Deep Sea/ Harsen
Trademark
HONNY POWER
Origin
Donguan, Guangdong, China
Gas Source
Gas
Cylinder
Multi-Cylinder
Engine Standard
ISO8528, ISO3046
Rated Voltage
400V, 6300V, 10500V, 11kv
Alternator Type
Stamford, Marathon, Leroy Somer, Engge
Warranty
1year or 1000hours
Specification
ISO8528
HS Code
8502120000

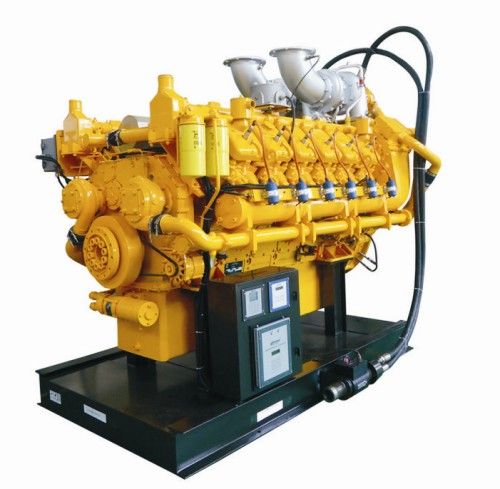

60Hz/1200rpm China Googol Natural Gas/ Bio Gas Generator Model COP Output(kW/kVA) Gas Engine Model Alterantor Model HGGM500 400kW/500kVA JTA2160-SG2 EG400-500N-6 HGGM800 640kW/800kVA JTA3240-SG2 EG400-800N-6 HGGM1250 1000kW/1250kVA JTA4320-SG2 EG500-1500N-6 HGGM1600 1280kW/1600kVA JTA5400-SG2 EG500-1800N-6 Application & Gas Type: Type:Type: . Biogas (Landfill Gas, Wastewater Biogas, City Sewage Biogas, Farm Biogas, etc. ); . Natural Gas, Oil Field Gas, Shale Gas; . Coal Gas . Distributed Energy System (Combined Heat & Power Plant)lant)lant) Generator Description: 1. Specially-designed air valves, crankshaft, camshaft, pistons, ignition system and combustion chamber according to international brands gas engine technology(Cummins, MAN, Guascor, Doosan) 2. Adopting high-precision special gas engine speed governor: Precise speed governing, instant recovering ability so as to fit different loads upon the three signals: Rotating speed, load and temperature. 3. Using advanced intelligent Deep Sea 7510 generator controller: Capable computer chip, with full monitoring, control, alarm and protecting function, all-in-one configuration for all kinds of demands. 4. Electrical system: 24V cranking motor starting and battery charging system. 5.20 years genset repair and maintenance experience. Parallel operation with genset or city power grid for option. Standard Supply Scope: -Gas engine with alternator, 400V, 60Hz -Ignition control module -Gas filter/Air Mixer -Cut off valve, Pressure regulator -Ignition coil, spark plug, high perssure wires -Electronic Governor and Actuator -Intake air filter -Flame arrester
