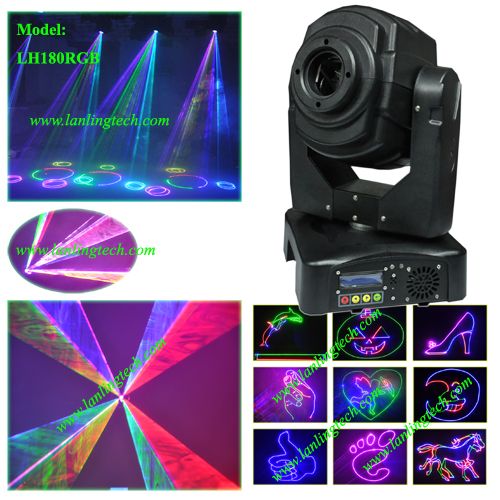

Model: LH180RGB
Description: RGB ILDA Animation Logo Disco DJ Stage Moving Head Laser Light
Description 1.8W RGB Multi Color Moving-Head Animation laser
Feature: This moving-head animation laser light is a great achievement on this decade. It has been pre-programmed with 103 kinds of geometric figures and 10 kinds of animations. All those patterns can be operated under DMX control, which has functions of moving up/down/left/right, zoom in/out, rotating, drawing, billowing, speed, color, etc. The most advance function is the horizontal/vertical speed control, which has 256 levels on the speed. On the easy-to-use LCD indicator, this laser light can be set to the stay-still mode. Horizontal angle at 0 to 540° And vertical angle at 0 to 270° . Each level on horizontal angle is 2.1° And on vertical angle is 1.05° .le is 1.05° .g; .le is 1.05° .
Scanner 25kpss High-speed optical scanner, big angle scanning (0 to 30° )eg; )eg; )
Horizontal moving angle: 540°°deg;°
Vertical moving angle: 270°°deg;°
Scanning Tilt and Pan
Vertual Operating platform: LCD1602 indicator and 4-in-1 key control, easy to use
Laser Green: 300mW 532nm
Red: 1000mW 650nm Blue: 500mW 450nm Mixed white laser 1800mW
Play Mode Sound Active, AUTO-Beam, AUTO-Animation, DMX, Master/ Slave, PC Control DMX channels: 15
PC Control Compatible ILDA laser show software with ILDA interface. Use electronic switches to conversion full ILDA signal
Safety Capacity Design according to security and good performance, safer to human and environment. Master/Slave mode, DMX512 mode and PC Control mode, will shut off laser automatically without trigger signal
Power Supply Bi-Voltage 110V to 220V-250V, 50/60Hz, 50W
Net Weight 9.5Kg
Gross Weight 12Kg (in carton box) 29Kg (in Flight case)
Volume Weight 15Kg (/5000) or 12.5Kg(/6000) 23.5Kg (/5000) or 19.6Kg(/6000), with flightcase
Inner Box 505*360*350(0.064m³ ) 600*430*400(0.11m³ ), with flightcase flightcase flightcase
Outer Box 1PCS/carton 1PC/flightcase
Accessories Included: User' s Manual Power Supply Cable (UK, USA, EURO, AUS, BRZ).
Optional: DMX cable
DB25 ILDA/PC Cable
Flight case
Laser software, such as Quickshow, LD2000, iShow, Mamba Black, Phoenix, or others.
Applicable Place Logo, company advertising, superstar fashion show, DJs, Bands, Bars, Pubs, Clubs, Roller skating rinks, KTV, Family party, etc.
Customized OEM, ODM
