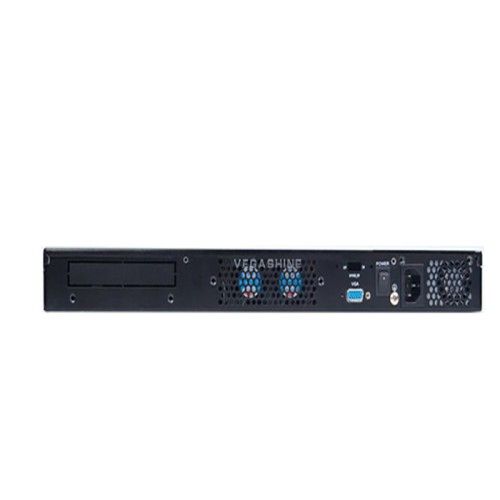

6 LAN and 6 SFP Optical Fiber Ports Network Security Firewall Appliance

6 LAN and 6 SFP Optical Fiber Ports Network Security Firewall Appliance

bargain

add to cart
Quick Details
Product name : Firewall security appliance/Router
Included 1U Rackmount server chassis +Motherboard+ Intel Atom 1037U CPU+Power supply
Integrated Intel® Celeron 1037U Dual-core 1.8GHz (2M Cache)
Support 2* 240 Pin DDR3 slots up to 16GB
1* VGA header
6*RJ45 gigabit ports
6*1000Mbps SFP ports
Supporting Wake-on-LAN , PXE function , BYPASS
3*SATA II
1* CF card slot
1* COM(CISCO Standard Interface)
1*RS232 header
4* USB 2.0 port
Dimension : 1U rackmount 440mm(W)*375mm(D)* 44mm(H)
Power supply AC 110~240V / 50Hz


Specifications

CPU
Integrated Intel® Celeron 1037U Dual-core 1.8GHz

Chipsets
HM65

Memory
Support 2* 240 Pin DDR3 slots up to 16GB

Display
1* VGA header inside

Network Function
6 *RJ45 gigabit ports (6 *Intel® I211-AT)
4*1000Mbps SFP ports (Intel® I350AM4 ethernet controller)
2*1000Mbps SFP ports (Intel® I350AM2 ethernet controller)
Support 3 pair of bypass
Supporting Wake-on-LAN , Watchdog and PXE function

Storage
3*SATA II
1* CF card slot

Expansion slots
1*PCIE x8 slots

Status LED lamp

Bypass_LED
POWER_LED
HDD_LED Indicator
Alarm_LED

I/O
1* COM(CISCO Standard Interface console)
2* USB 2.0

Size
1U rackmount
440mm(W)*375mm(D)* 44mm(H)

Operating Temp.
-0°C~45°C

Storage Temp.
-10°C~55°C

Humidity
5%-95% (relative humidity; non-condensing)

Power
AC 110~240V / 50Hz

Warranty : 1 Year
