6 Gigabit LAN Intel Atom D2550 Firewall Appliance / Router Industrial Computer

bargain

1U rackmount 6 gigabit LAN Intel ATOM D2550 Firewall appliance / Router industrial computer/server

Quick Details
--Product name : Firewall appliance/Router
--Model Number : 1UFWD2550L6D

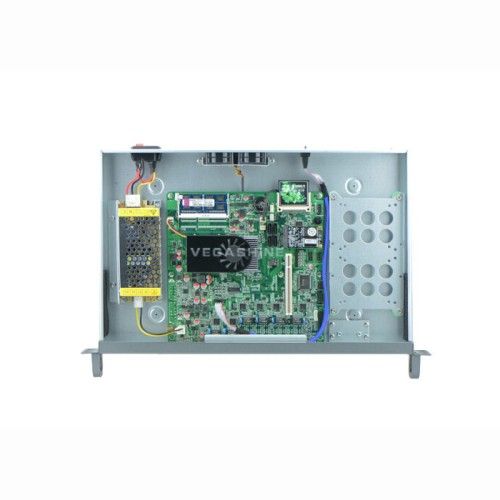

-- Included 1U Rackmount server chassis +Motherboard+ATOM D2550 cpu+Power
-- Onboard Intel® Atom D2550 (1.86GHz)
-- Intel® ICH10R chipset
--Support 1* SO DDR3 Solt Support 800/1066MHz,Max.4GB
--Integrated 6* Intel 82583V 10/100/1000Mbps Ethernet ,
--Support Wake-On-Line,PXE function
-- Providing a 3.5/2.5inch SATA disk location ,1* CF card slot
--Support SSD (MiniSATA)
--1*COM (RJ45 CISCO standard)
--2*USB ports
--1*VGA ports
-- AC to DC_12V/10A Industrial Power Supply
--Size: 430mm(L)* 280mm(W)* 46.2mm(H)

Specifications

CPU	Intel® Atom D2550 dual-core processor (1.86GHz)
Chipset	Intel® ICH10R Express Chipset
Memory	1* SO DDR3 Solt Support 800/1066MHz,Max.4GB
Display	1* DB15 VGA port
Expansion	1* MSATA, Support SSD/USB WIFI
Expansion	1* PCI
Ethernet	Integrated 6* Intel 82583V 10/100/1000Mbps Ethernet ,Support Wake-on-LAN,PXE
Storage	Providing a 3.5/2.5inch SATA disk location ,1* CF card slot
Panel Port	1* COM(compatible with CISCO Standard)
	2* USB 2.0 (Re-install system ,No need disassemble the chassis)
	6* LAN
	1* POWER
	1* LED (POWER LED / HDD LED) Indicator
	1* VGA port (Rear panel) Easy debugging
FAN	1* CPUFAN & 2* SYSFAN(3pin)
WatchDog	Integrated:256 level,0~255min
Anti-vibration	5~300Hz/random operating
Power	AC to DC_12V/10A Industrial Power Supply
OperateTem	0°C~50°C
StorageTem	-20°C~70°C
OperateHum	5%-95%
Humidity	5%-95% (relative humidity; non-condensing)
Installation	1U Rack-mount
Material and Process	Surface sandblasting oxidation process
Size	430mm(L)* 280mm(W)* 462mm(H)

Warranty : 1 Year
