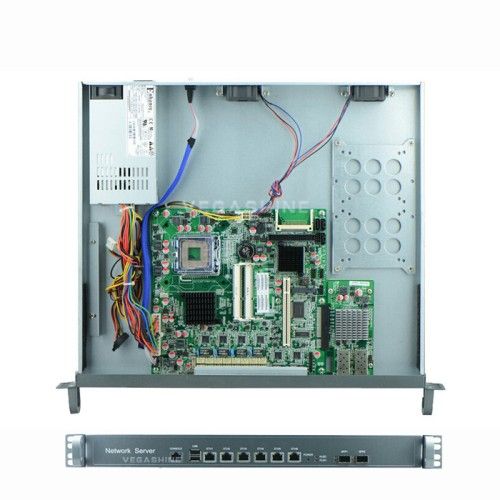

6 LAN and 2 Optical Fiber Ports Intel B75 LGA1155 Network Security Firewall

bargain

--Product name : Firewall appliance/Router
--Model Number : 1UFWB75L6BO2
--Included 1U Rackmount server chassis +Motherboard+Power
--Support LGA1155 Intel Core™ i3/i5/i7 32nm/22nm Processor
--Using Intel® B75 Express Chipset
--Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB
--1* DB15 VGA port
--Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet
--2* 10g Intel 82599 Optical fiber (2*Intel 82580DB for optional)
--Supporting Wake-on-LAN and PXE function
--LAN1~4 supports 2 groups of BYPASS function
--Providing 1* Mini-PCIE slot, support WIFI/3G module
--Providing a 3.5/2.5inch SATA disk location
--1* MSATA slot, support SSD 6Gbps
--1* CF card slot
--1* COM(CISCO Standard Interface)
--2* USB 2.0 port
--6* LAN port
--2* Fiber socket
--ATX Power supply
--1U chassis frame
--Surface sandblasting oxidation process(Silver gray)
--Dimension : 430mm(L)* 380mm(W)* 46.2mm(H)

Specifications

CPU	Support LGA1155 Intel Core™ i3/i5/i7 32nm/22nm Processor
Chipset	Using Intel® B75 Express Chipset
Memory	Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB
Display port	1* DB15 VGA port
Network Function	Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet
	2* Intel 82599 Gigabit Optical fiber (2*Intel 82580DB for optional)
	Supporting Wake-on-LAN and PXE function
	LAN1~4 supports 2 groups of BYPASS function
Wireless Network	Providing 1* Mini-PCIE slot, support WIFI/3G module
Storage	Providing a 3.5/2.5inch SATA disk location
	1* MSATA slot, support SSD 6Gbps
	1* CF card slot
Panel Port	1* COM(CISCO Standard Interface)
	2* USB 2.0 port
	6* LAN port
	2* Fiber socket
	1* POWER Switch
	1* POWER_LED, HDD_LED Indicator
	1* VGA port (Rear panel)
Cooling system	1* CPUFNA, 2* SYSFAN
Operating Temp.	-0°C~50°C
Storage Temp.	-20°C~70°C
Humidity	5%-95% (relative humidity; non-condensing)
Anti vibration	5~300Hz/random operating
Power	ATX Power supply
Installation	1U chassis frame
Material and Process	Surface sandblasting oxidation process
Size	430mm(L)* 380mm(W)* 46.2mm(H)

Warranty : 1 Year
