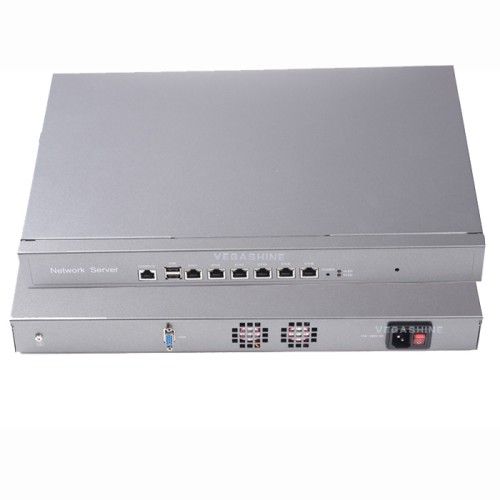

6 LAN Intel B75 Support Bypass Firewall with Cisco Standard COM
bargain
add to cart --Product name : Firewall appliance/Router
--Model Number : 1UFWB75L6B
--Included 1U Rackmount server chassis +Motherboard+Power
--Support LGA1155 Intel Core™ i3/i5/i7 32nm/22nm Processor
--Using Intel® B75 Express Chipset
--Support Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB
--1* DB15 VGA port
--Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet
--Supporting Wake-on-LAN and PXE function
--LAN1~4 supports 2 groups of BYPASS function
--Providing 1* Mini-PCIE slot, support WIFI/3G module
--Providing a 3.5/2.5inch SATA disk location
--1* MSATA slot, support SSD 6Gbps
--1* CF card slot
--1* COM(CISCO Standard Interface)
--2* USB 2.0 port
--6* LAN port
--1* VGA port (Rear panel)
--ATX Power supply
--1U chassis frame
--Surface sandblasting oxidation process(Silver gray)
--Dimension : 430mm(L)* 280mm(W)* 46.2mm(H)
Specifications
--Model Number : 1UFWB75L6B
--Included 1U Rackmount server chassis +Motherboard+Power
--Support LGA1155 Intel Core™ i3/i5/i7 32nm/22nm Processor
--Using Intel® B75 Express Chipset
--Support Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB
--1* DB15 VGA port
--Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet
--Supporting Wake-on-LAN and PXE function
--LAN1~4 supports 2 groups of BYPASS function
--Providing 1* Mini-PCIE slot, support WIFI/3G module
--Providing a 3.5/2.5inch SATA disk location
--1* MSATA slot, support SSD 6Gbps
--1* CF card slot
--1* COM(CISCO Standard Interface)
--2* USB 2.0 port
--6* LAN port
--1* VGA port (Rear panel)
--ATX Power supply
--1U chassis frame
--Surface sandblasting oxidation process(Silver gray)
--Dimension : 430mm(L)* 280mm(W)* 46.2mm(H)
Specifications
| CPU | Support LGA1155 Intel Core™ i3/i5/i7 32nm/22nm Processor |
| Chipset | Using Intel® B75 Express Chipset |
| Memory | Support Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB |
| Display port | 1* DB15 VGA port |
| Network Function | Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet |
| Supporting Wake-on-LAN and PXE function | |
| LAN1~4 supports 2 groups of BYPASS function | |
| Wireless Network | Providing 1* Mini-PCIE slot, support WIFI/3G module |
| Storage | Providing a 3.5/2.5inch SATA disk location |
| 1* MSATA slot, support SSD 6Gbps | |
| 1* CF card slot | |
| Panel Port | 1* COM(CISCO Standard Interface) |
| 2* USB 2.0 port | |
| 6* LAN port | |
| 1* POWER Switch | |
| 1* POWER_LED, HDD_LED Indicator | |
| 1* VGA port (Rear panel) | |
| Cooling system | 1* CPUFNA, 2* SYSFAN |
| Operating Temp. | -0°C~50°C |
| Storage Temp. | -20°C~70°C |
| Humidity | 5%-95% (relative humidity; non-condensing) |
| Anti vibration | 5~300Hz/random operating |
| Power | ATX Power supply |
| Installation | 1U chassis frame |
| Material and Process | Surface sandblasting oxidation process(Silver gray) |
| Size | 430mm(L)* 280mm(W)* 46.2mm(H) |
