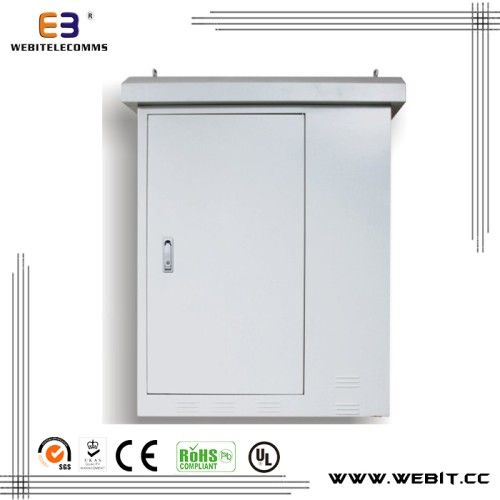

800mm Wide 19′′ Outdoor Cabinets (WB-OD-C)

800mm Wide 19′′ Outdoor Cabinets (WB-OD-C)

bargain

add to cart
Model NO. WB-OD-C
Installation Vertical
Thickness Mounting Profile 2.0mm. Others 1.5mm
Static Loading 800-1000kgs
Colour Ral9004, Ral7044, Ral7039 etc
Certificate CE. RoHS. SGS
Specification CE, ROHS, ISO
HS Code 8517709000
Type IP55 or 65 Outdoor Cabinets
Material SPCC Cold Rolled Steel
Package Cartons, Wooden Case, Wooden Pallets
Logo Silk Print, Aluminum Sticker, Rubber Sticker
Shipping Sea, Air, Train, Truck
Trademark Webitelecomms
Origin Ningbo, China
Features:
_ The foundation may use the entire block or divide three parts of dense closing boards to seal.
_ In the cabinet may use 19 'to install the structure, also may install the mounting panel.panel.
_ The natural wind cools, the cabinet crown is loaded with 4 exchanges to pull out the ventilator, lower part the cabinet two sides opens has the blowhole and attaches the cotton and kapok dust cover, both guarantee the air along the exchange, and has the very good dustproof function.
_ The cabinet material may use the high quality cold rolling steel plate, the stainless steel or the aluminum zinc plate.
_ May carry on the structural design according to the Customer request.
Standard and Material:
Comply with GB/T 19183 and IEC 61969.
Surface treatment: The degreasing, the phosphorization,
The electricity swim the primer, the static electricity dusting.
Main body color: The computer's white (RAL7035).
Protection Degress: IP55, EN60529/10.91
Structure: ASSEMBLE ONLY
Item Number Wide(mm) Deep(mm) High(mm)
WB-OD-C-8614 800 600 1375
WB-OD-C-8814 800 800 1375
WB-OD-C-8616 800 600 1575
WB-OD-C-8816 800 800 1575
