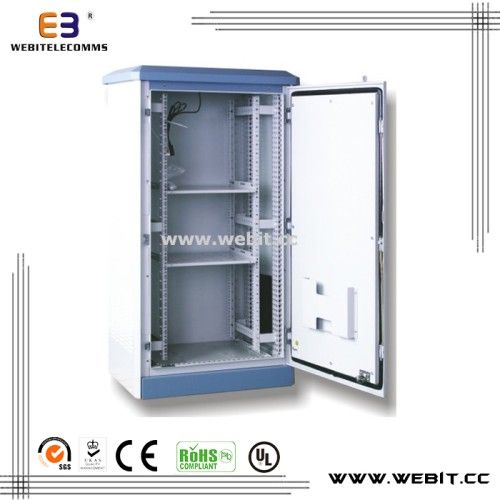

19′′ Outdoor Server Cabinet with A/C
bargain
add to cart| Model NO. | WB-OD-A |
| Usage | Network Integration System |
| Fan Number | Four |
| Certification | CE, ISO, RoHS, GS |
| Thickness | Mounting Profiel 2.0mm, Others 1.5-1.8mm |
| Package | Cartons, Wooden Case, Wooden Pallets |
| Shipping | Sea, Air, Train, |
| Delivery Date | 20-25 Days |
| Frame | 1.5mm SPCC Steel |
| Specification | ISO9001: 2000, CE, RoHS |
| HS Code | 8517709000 |
| Type | IP55 or IP65 Outdoor Cabinets |
| Installation | Assemble/Disassemble |
| Capacity | 12u, 17u, 22u, 27u, 32u, 37u, 42u, 47u |
| Material | SPCC Cold Rolled Steel |
| Static Loading | 1000-1500kgs |
| Logo | Silk Print, Aluminum Sticker, Rubber Sticker |
| Protection Data | IP55 or IP65 |
| Payment Term | L/C, Wu, T/T |
| Trademark | Webitelecomms |
| Origin | Ningbo, China |
----------------------------------------------------------------Description----------------------------------------------------------------------
*Reliable 19' international structure, Double wall typell type
*Front single solid metal door with handle lock
*Enhance door hinges with 130 degrees operation angle
*Rear single solid metal panel
*Top with 2/8 fans for airflow&cooling, fan size: 120*120*38 mm*38 mm38 mm
*Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable
*Varies specification upon customers' special requirements
*with 1 pc of lighting system,smoke alarm,temperature sensor
*Width: 600,800 mm
*Depth: 600,800mm
*Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
*Customized size is available
*Flexible packing methods allows for convenient stocking and end user delivery
----------------------------------------------------------------Standard and Material---------------------------------------------------------
Comply with
*ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
*Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating *Material:SPCC cold rolled steel or Zink-plated panel or stainless steel
*Thickness:Mounting profile:2.0mm,others: 1.50mm
*IP degree: IP-55
*Color:Body color:RAL5012(Top cover and base);RAL7035(The others)
--------------------------------------------------------------------parameter--------------------------------------------------------------------
----------------------------------------------------------------------Specification--------------------------------------------------------------
-----------------------------------------------------------------Operation Conditions---------------------------------------------------------
*Must be protected against:
- Mechanical damage
- Improper handling
- A different usage than the cabinet is intended for
*Improper handling is especially:
- Overloading (maximum recommended load exceeding)
- Device installation that can influence negatively operation and function of the cabinet or the installed equipment
- Change of the construction or design of the cabinet
------------------------------------------------------------------Installation of the cabinet---------------------------------------------------
*To ensure the maximum recommended load, it is necessary to distribute the load equally.
*Place the cabinet on a flat floor and adjust any differences using the levelling feet.
*To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blar
*Reliable 19' international structure, Double wall typell type
*Front single solid metal door with handle lock
*Enhance door hinges with 130 degrees operation angle
*Rear single solid metal panel
*Top with 2/8 fans for airflow&cooling, fan size: 120*120*38 mm*38 mm38 mm
*Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable
*Varies specification upon customers' special requirements
*with 1 pc of lighting system,smoke alarm,temperature sensor
*Width: 600,800 mm
*Depth: 600,800mm
*Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
*Customized size is available
*Flexible packing methods allows for convenient stocking and end user delivery
----------------------------------------------------------------Standard and Material---------------------------------------------------------
Comply with
*ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
*Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating *Material:SPCC cold rolled steel or Zink-plated panel or stainless steel
*Thickness:Mounting profile:2.0mm,others: 1.50mm
*IP degree: IP-55
*Color:Body color:RAL5012(Top cover and base);RAL7035(The others)
--------------------------------------------------------------------parameter--------------------------------------------------------------------
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | solid metal | / | double wall type |
3 | Side Door | 0 | 0 | / | / | |
4 | Back Door | 1 | 1 | solid metal | / | double wall type |
5 | Lock | 2 | 2 | / | / | Handle Lock |
6 | Top cover | 1 | 1 | 1.5mm SPCC steel | Powder coating | |
7 | Rear door panel | 1 | 1 | 1.5mm SPCC steel | Powder coating | |
8 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
9 | Ac fan | 2-8 | 2-8 | / | / | D﹥800,6-8pcs8pcs |
10 | Bottom panel | 1 | 1 | SPCC T=2.0 | Powder coating | |
11 | Earthing bolts | 1 | 1 | SPCC T=1.5 | / | 25 cm |
12 | Castors tray | / | / | SPCC T=2.5 | Powder coating | |
13 | Castors | / | / | / | / | |
14 | Ajustable feet | / | / | / | / | |
15 | Mounting angle | 2 | 2 | SPCC T=1.5 | Powder coating | |
16 | 19inch rails | 4 | 4 | SPCC T=2.0 | Powder coating | |
17 | Cable management | / | 2 | SPCC T=1.5 | Powder coating | Only for 800 W |
----------------------------------------------------------------------Specification--------------------------------------------------------------
| Item Number | Wide(MM) | Deep(MM) | High(MM) |
| WB-OD-A 8614 | 800 | 600 | 1375 |
| WB-OD-A 8814 | 800 | 800 | 1375 |
| WB-OD-A 8616 | 800 | 600 | 1575 |
| WB-OD-A 8816 | 800 | 800 | 1575 |
-----------------------------------------------------------------Operation Conditions---------------------------------------------------------
*Must be protected against:
- Mechanical damage
- Improper handling
- A different usage than the cabinet is intended for
*Improper handling is especially:
- Overloading (maximum recommended load exceeding)
- Device installation that can influence negatively operation and function of the cabinet or the installed equipment
- Change of the construction or design of the cabinet
------------------------------------------------------------------Installation of the cabinet---------------------------------------------------
*To ensure the maximum recommended load, it is necessary to distribute the load equally.
*Place the cabinet on a flat floor and adjust any differences using the levelling feet.
*To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blar
