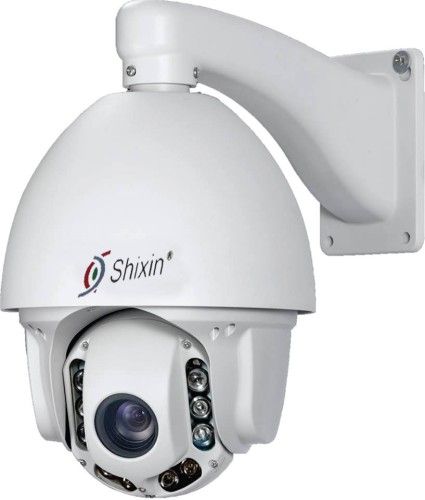

IR Distance 150 Meter, 2.0 Megapixel IP Camera Zoom, 36X Optical Zoom PTZ IP Camera, High Speed Dome Camera
IR Distance 150 Meter, 2.0 Megapixel IP Camera Zoom, 36X Optical Zoom PTZ IP Camera, High Speed Dome Camera
| Model NO. | IP-330TS |
| Sensor | CCD |
| Technology | Infrared |
| Effective Distance | ≧30m |
| Sensor Size | 1/3 inch |
| Support | FTP, Alarm, Rtsp |
| Wireless Camera | WiFi 802.11b/G/N |
| Video Resolution | D1(720X576), CIF(352X288), Qcif(176X144) |
| Resolution | 1920X1080 |
| Transport Package | Neutral Retail Box |
| Origin | Shenzhen, China |
| Type | IP Camera |
| Speed | High-speed Dome |
| Feature | Vandal-proof, Waterproof / Weatherproof, High Definition, Auto BLC |
| Focal Length | Zoom Lens |
| High Quality | IR High Speed Dome Wireless IP Camera |
| Camera Module | CCD 27X Optical X 27X Digital Zoom |
| Special Feature | PTZ 27X Optical Digital Zoom |
| IR Distance | 150 Meters |
| Trademark | Shixin or OEM or ODM |
| Specification | ISO9001 |
| HS Code | 8529904100 |
I36X Optical Zoom PTZ IP Camera, High Speed Dome camera (IP-330TS)
Feature:
High speed Dome PTZ camera (9'' housing for choosing)
Explosion-proof IP66; Day/Nigh 12PCS IR LED lights, Distance 80/150M
H. 264 compression
Focus: AUTO/Manual
Iris: AUTO/Manual
Zoom: F=4.1- 73.8mm
256 Presets and 1 cruise scanning section
Continuous 360° Horizontal Rotation and 180° Vertical Auto FlipAuto FlipAuto Flip
IR LED power adjusted automatically according to the zoom, avoid the flashlight effect.
Feature:
High speed Dome PTZ camera (9'' housing for choosing)
Explosion-proof IP66; Day/Nigh 12PCS IR LED lights, Distance 80/150M
H. 264 compression
Focus: AUTO/Manual
Iris: AUTO/Manual
Zoom: F=4.1- 73.8mm
256 Presets and 1 cruise scanning section
Continuous 360° Horizontal Rotation and 180° Vertical Auto FlipAuto FlipAuto Flip
IR LED power adjusted automatically according to the zoom, avoid the flashlight effect.
| Serial No. | Type | Specification |
| CCD module | Image sensor | 1/3 CCD 2.0 Megapixel |
| Lens | Zoom: 3.2-86.4mm, 27X / 36X Optical Zoom | |
| Min. illumination | 0.5LUX / F1.2 | |
| Day/night | IR | 12pcs IR Led lights, Distance 80/150M |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144)288) QCIF(176× 144); 144)288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) | |
| 25fps@D1(PAL) | ||
| Audio | Audio encoding format | G. 711 ADPCM |
| Microphone | Connect to pickup | |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Client | Display at most 5X6 pictures at a time/Multiple pages switching/Timed record | |
| Security | Password Protection: Configured by the Administrator | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded Linux system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside Port | GPIO port | 1ch input Alarm, 1ch output Alarm |
| SD Card | Support (option) | |
| Video port | 1ch output video. (Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| Patrol | 5( programmable) | |
| Preset | 255 | |
| Pan Operation Speed | 0.1-250 degrees/s | |
| Pan Patrol Speed | 360 degrees/s | |
| Tilt Operation Speed | 0.1-150 degrees/s | |
| Tilt Patrol Speed | 90/180 degrees/s | |
| Pan Rotation Angle | 360 degrees continuously | |
| General | Power supply | Input AC 100-240 V 50/60Hz |
| Output DC12V 5A | ||
| Work Environment | Temperature: -10° C- 55° C Humidity: 0% - 80%RHG(Waterproof)terproof)terproof) | |
| Power | 8W |
