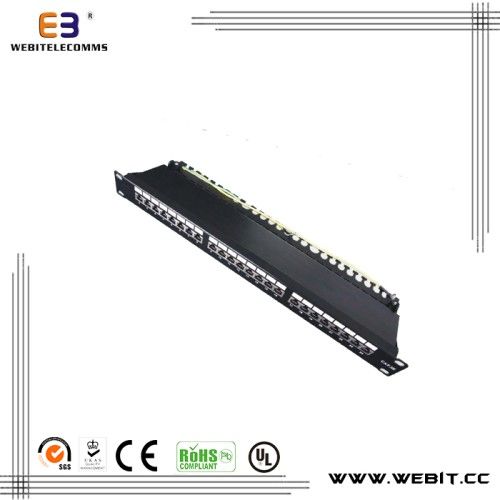

19′′ 1u 24 Ports FTP Cat5e Patch Panel with Cover
| Model NO. | WB-PP-3224 3X8 |
| Shielded | FTP |
| Height | 1u |
| Color | Black/Grey |
| Type | Cat5e/CAT6 FTP Patch Panel |
| Certification | RoHS, ISO |
| Specification | Patch Panel |
| HS Code | 8517709000 |
| Patch Panel Type | Cat5e/CAT6 Patch Panel |
| Ports | 24 Ports |
| Size | 19 Inch Standard |
| IDC | 110IDC/Krone IDC/Dual IDC |
| Material | SPCC |
| Trademark | Webitelecomms |
| Origin | Ningbo, China |
Specifications
1. Cat5e patch panel easy to find out the generic cabling system problem
2. OEM, ODM available
3. ISO9001, RoHS, CE, UL, ETL
Standard:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40;
Meet ISO/IEC Generic Cabling Standard 11801;
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
Angle: 180 Degree
Termination: 110 Type/Krone IDC /Dual IDC for choose
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04') thickness, 2 layerslayers
Contact: PC UL94V-0, 0.45mm(0.018')quot;)
Diameter Phosphor bronze with 3 u' Gold plating on contact area. area.
1. Cat5e patch panel easy to find out the generic cabling system problem
2. OEM, ODM available
3. ISO9001, RoHS, CE, UL, ETL
Standard:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40;
Meet ISO/IEC Generic Cabling Standard 11801;
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
Angle: 180 Degree
Termination: 110 Type/Krone IDC /Dual IDC for choose
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04') thickness, 2 layerslayers
Contact: PC UL94V-0, 0.45mm(0.018')quot;)
Diameter Phosphor bronze with 3 u' Gold plating on contact area. area.
| Product Name | Network Patch Panel |
| Item No | WB-PP-3224 3X8, each 8 pcs of modular shielded together. |
| Category | Cat5e FTP/STP patch panel |
| Port | 24port |
| Contact | PC Ul94V-0, 0.45mm(0.018')quot;) Diameter Phosphor bronze with 3 U'/0.0762um to 50 U'/1.27um Gold plating on contact areaontact area |
| Color | Black or Grey or other color as per requirements. |
| Termination | Krone IDC/110 IDC/ Dual IDC for choose |
| Product Size | 1U ,19'' standard installation meas fit for 19'' the rack and wall mounted |
| IDC | PC UL94V-0, Accept 22-26 AWG Solid Wire |
| Standard | ISO/IEC 11801 and EIA/TIA-568Bstandards |
| MOQ | 100pcs |
| Price | FOB Ningbo |
| Packing | 1 pcs/box, 10 pcs/carton, carton size: 52 X 26 X 50cm; G.W:19.6KG/CTN, N.W:18.0KG/CTN |
| Payment Term | T/T & Western UnionUnionUnion |
