Features:

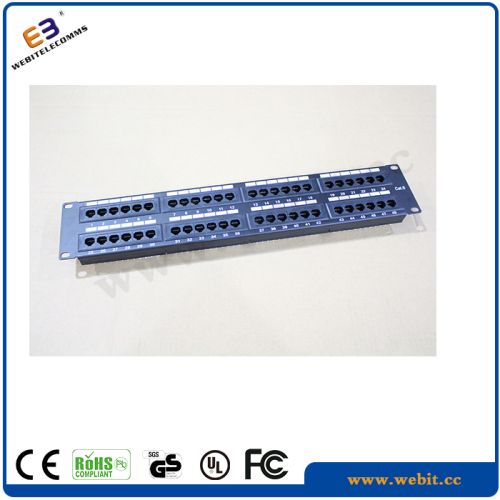

CAT6A UTP 48 PORTS PATCH PANEL
Meet or exceed the current T568A and T568B standard.
Termination: Krone IDC
Fitting for 22AWG/23AWG/24AWG/26AWG Solid wires
Punching duration: ≥ 250timesimesimes
Inserting duration: ≥ 750timesimesimes
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000V AC RMS, 60Hz 1 min
IDC contact material: Phosphor bronze with tin plating over nickel;
Contact material: Phosphor bronze with gold plating over nickel;
Panel frame: Black or Ivory electrostatic powder-coated steel;
Housing material: ABS or PC, UL94-V0 or UL94-V2
Electrical:
Angle: 90, 180 Degree
Termination: Krone IDC
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire. PCB: FR4 1.6mm(0.04') thickness, 2 layers Contact: PC UL94V-0, 0.45mm(0.018') Diameter Phosphor bronze with 3 u' Gold plating on contact area.on contact area.
