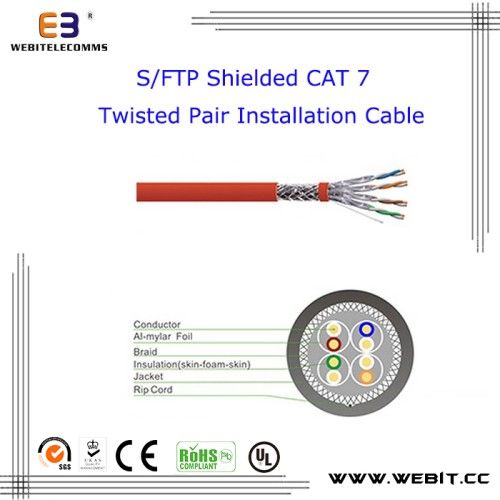

S/FTP Shielded Cat 7A Twisted Pair Installation Cable, Cat7a S/FTP Data /LAN Cable
| Model NO. | CAT7A S/FTP data cable |
| Conductor Material | Copper |
| Type | Cat7a |
| Conductor Type | Solid |
| Certification | CE, ISO, RoHS, CCC |
| Brand | Webit or OEM |
| AWG | 23 |
| Jacket | PVC/Lszh/LDPE |
| Specification | CE RoHS |
| HS Code | 8544421100 |
| Application | Local Communication Cable, Coaxial Cable, LAN Cable |
| Cover Material | Cmx/Cm/Cmr/Lszh/LDPE |
| Material Shape | Round Wire |
| Wire Core Material | Bare Copper Wire |
| Model | Cat7a S/FTP Data Cable |
| Conductor | Solid Bare Copper |
| Insulation | PE(Skin-Foam-Skin) |
| Trademark | Webitelecomms |
| Origin | Ningbo, China |
Appliacation
1. Suitable for structured premised cabling;
2. For transmission of digital and analogue voice and data signals
3. Especially suitable for all Class FA applictions;
4. ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base T(IEEE802.3)
5. Token Ring4/16 Mbit/s, TP-PMD/TP/DDI 125bit/s, ATM155Mbit/s(IEEE 802.5)
Electronic Characteristics
Impedance: 4-100MHz 100± 15(ohms).15(ohms).5(ohms).
100-200MHz 100± 22(ohms).22(ohms).2(ohms).
200-1000MHz 100± 32(ohms).32(ohms).2(ohms).
Max. Conductor DC Resistance 20º C: 8.4(ohms/100m)s/100m)/100m)
Resistance unbalance(%): Max2.5
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Coupling Attenuation: Min 80 Db.
Installation temperture: 0-50º C.rdm; C.dm; C.
Operation temerture: -20~60º Cordm; Crdm; C
1. Suitable for structured premised cabling;
2. For transmission of digital and analogue voice and data signals
3. Especially suitable for all Class FA applictions;
4. ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base T(IEEE802.3)
5. Token Ring4/16 Mbit/s, TP-PMD/TP/DDI 125bit/s, ATM155Mbit/s(IEEE 802.5)
Electronic Characteristics
Impedance: 4-100MHz 100± 15(ohms).15(ohms).5(ohms).
100-200MHz 100± 22(ohms).22(ohms).2(ohms).
200-1000MHz 100± 32(ohms).32(ohms).2(ohms).
Max. Conductor DC Resistance 20º C: 8.4(ohms/100m)s/100m)/100m)
Resistance unbalance(%): Max2.5
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Coupling Attenuation: Min 80 Db.
Installation temperture: 0-50º C.rdm; C.dm; C.
Operation temerture: -20~60º Cordm; Crdm; C
| Assortment | Shieded | Describe |
| Cat 7A Installation cable | S/FTP Shielded | S/FTP Shielded Cat 7A Twisted Pair Installation cable |
| Conductor | ||||||
| Conductor | Insulation | Qty of Conductor | Color code | Indiviual pair shied | Overall shield | Drain wire |
| Solid Bare Copper 23AWG | PE(skin-Foam-Skin) | 8,twisted in 4 pairs | blue-white, orange-white, green-white, brown-white | AL-Foil, 100%coverage,foil face out | Tinned copper braid | None |
| Outer jacket information | ||
| Item no | Outer jacket | overall diameter(mm) |
| D285-P | CMX | 8.3±0.3lusmn;0.3usmn;0.3 |
| D285-C | CM | 8.3±0.3lusmn;0.3usmn;0.3 |
| D285-R | CMR | 8.3±0.3lusmn;0.3usmn;0.3 |
| D285-L | LSZH | 8.3±0.3lusmn;0.3usmn;0.3 |
| D285-E | LDPE | 8.3±0.3lusmn;0.3usmn;0.3 |
