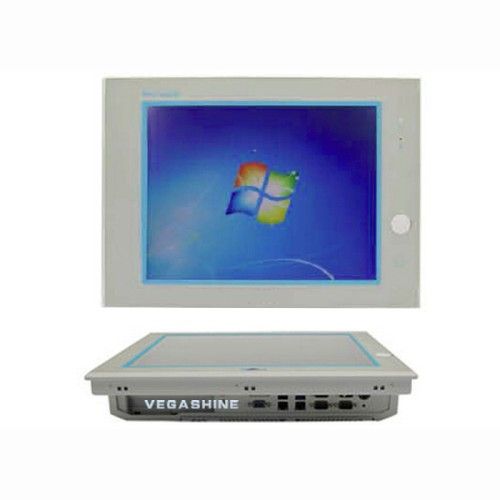

12 Inch TFT LED Screen Fanless IP65 Industrial Panel PC Celeron 847e CPU with 4 COM
bargain
add to cart 12' inch TFT LED screen fanless IP65 grade Industrial Panel computer Celeron 847E cpu with 4 COM
Quick Details
High quality aluminum alloy panel IP65 protection grade
Fanless design
Dimension: 351(wide)*257(high)*80(thickness)
12' LED backlight screen, resolution:1280*768
12' Five line resistance touch screen
1 * HDMI, 1*DVI , 1* VGA support dual display
CPU: Intel Celeron dual core 847E 1.1Ghz
DDR3 4GB included
2.5' HDD 320G included
4 * COM
2*RJ45 gigabit LAN
4* USB2.0
2*USB3.0
2* Mini PCI-E , Extensible Wifi 2.4G/3G
2*PCI 32Bit expansion slots (standard)
AC110V ~240V to 12VDC 7A power adapter (Standard)
Available Options
RAM
2GB/4GB/8GB for optional
Storage
2.5 'SSD 16G/32G/60G/120G ( optional)
2.5' HDD 320G included (320G/500G/1TB for optional)
Specifications
Quick Details
High quality aluminum alloy panel IP65 protection grade
Fanless design
Dimension: 351(wide)*257(high)*80(thickness)
12' LED backlight screen, resolution:1280*768
12' Five line resistance touch screen
1 * HDMI, 1*DVI , 1* VGA support dual display
CPU: Intel Celeron dual core 847E 1.1Ghz
DDR3 4GB included
2.5' HDD 320G included
4 * COM
2*RJ45 gigabit LAN
4* USB2.0
2*USB3.0
2* Mini PCI-E , Extensible Wifi 2.4G/3G
2*PCI 32Bit expansion slots (standard)
AC110V ~240V to 12VDC 7A power adapter (Standard)
Available Options
RAM
2GB/4GB/8GB for optional
Storage
2.5 'SSD 16G/32G/60G/120G ( optional)
2.5' HDD 320G included (320G/500G/1TB for optional)
Specifications
| Structures | Front panel | High quality aluminum alloy, anodic oxidation, fine sand grain, IP65 protection grade |
| Chassis | High quality aluminum alloy and cold-rolled steel plate, fine sand textured paint | |
| Cooling | Fanless in the internal ,large area of aluminum fins and air cooling auxiliary heat dissipation design | |
| Installing | Support embedded installation, VESA cantilever installation and desktop installation etc. | |
| Size(mm) | 351(wide)*257(high)*80(thickness) | |
| Cabinet Size(mm) | 343(wide)*249(high) | |
| VESA cantilever(mm) | 100mm*100mm | |
| GW(Kg) | 5Kg | |
| Color | light gray | |
| LED screen | LED screen | 12' LED backlight, resolution:1280*768 |
| Brightness | 500cd/m2 | |
| Working life | 50,000 Hours | |
| Visual Angle | 140(H)/120(V) | |
| touch screen | touch screen | 12' Five line resistance touch screen |
| Working life | 50 million times | |
| Performance | CPU | Intel Celeron dual core 847E 1.1Ghz |
| RAM | DDR3 4GB included (2GB/4GB/8GB for optional) | |
| Storage | 2.5 'SSD 16G/32G/60G/120G ( optional) 2.5' HDD 320G included (320G/500G/1TB for optional) | |
| Display | 1 * HDMI, 1*DVI , 1* VGA support dual display | |
| OS | WIN7,WIN8 , WIN XP, WES7, Linux Fredo 12.0 and so on | |
| I/O interface | Serial ports | 4 * COM (4* RS232 or 3*RS232+1*RS485 optional) |
| Ethernet | 2*RJ45 gigabit LAN support | |
| USB ports | 6* USB ( 1*USB2.0 Front ;1*USB2.0 Inside ;2*USB3.0 2*USB2.0 At the bottom ) | |
| Audio | Line Out, Mic | |
| Expansion | Expansion | 2* Mini PCI-E , Extensible Wifi 2.4G/3G wireless communication equipment 2*PCI 32Bit expansion slots (standard) PCI- E X1 expansion slots (optional) design with the fastening |
| Power | Power | AC110V ~240V to 12VDC 7A power adapter (Standard) |
| Work environment | Operating Temperation | -10ºC---+55ºC |
| Storage Temperation | -30ºC----+70ºC | |
| Operating Humidity | 5 ~ 95% (non-condensation) | |
| anti-vibration | 17 ~ 500Hz 1.5Grms | |
| Anti-shock | 20G (11mm cycle half-sine wave) |
