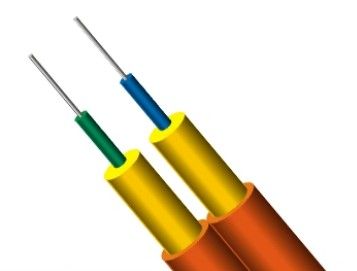

Duplex Flat Indoor Cable (LC-A02)

Duplex Flat Indoor Cable (LC-A02)

bargain

add to cart
Model NO. WB-LC-A02
Type Multi-mode Fiber
Usage Cabling System
Jacket Material PVC/Lszh/Zrpo
Delivery Length 1 Km or 2km
Origin Ningbo China.
Application Communication
Certification RoHS, CE, ISO9001
Fiber Type Single-Mode Fiber/Muti-Mode Fiber
Cable Dimension Nominal Cable Dimension
Trademark Webitelecomms
HS Code 8517709000
Application:
* Used in pgitails and patch cords
* Used in optical connections in optical communication equipment rooms and optical distribution frames, and optical apparatus connectors
* Used in indoor cabling
-------------------------------------------------------------------------------------
Features:
* Good mechanical and environmental characteristics
* Flame retardant characteristics meets the requiements of relevant standards
* The mechanical characteristics meet the requirements of relevant standards
* Soft, flexible, easy to splice, and with big capacity data transmission
* Meet various requirements of market and clients
-------------------------------------------------------------------------------------
Options:
*Fiber type: G. 652, G655 or G. 657 single-mode fiber, A1a or A1b, OM3 or OM4 muti-mode fiber, or other types of fiber
*Jacket material: Environmental flame retardant polyvinychloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), or other contracted material
*Jacket Color: (Including color of fiber)meets the requirements of relevant standard, or other contracted color
*Cable Dimension: The nominal cable dimension, or other contracted dimension
*Delivery Length: 1 km or 2km, or other contracted length
*Other requirements: Other contracted special requests
Fiber count cable dimension(mm) Cable weight(kg/km) Tensile (N)
Crush (N/100mm)
Min.Bend Radius
(mm)
Range of Temputerature
(ºC)rdm;C)rdm;C)



Long term short Long term short Dynamic Static -20 to +60
2 1.6×3.3mes;3.3mes;3.3 4.4 60 120 200 1000 50 30 -20 to +60
2 1.8×3.7mes;3.7mes;3.7 6.0 60 120 200 1000 50 30 -20 to +60
2 2.0×4.1mes;4.1mes;4.1 7.2 90 150 200 1000 50 30 -20 to +60
2 2.4×4.9mes;4.9mes;4.9 10 90 150 200 1000 50 30 -20 to +60
2 2.8×5.7mes;5.7mes;5.7 13 160 300 200 1000 60 30 -20 to +60
2 3.0×6.1mes;6.1mes;6.1 14.8 160 300 200 1000 60 30 -20 to +60
