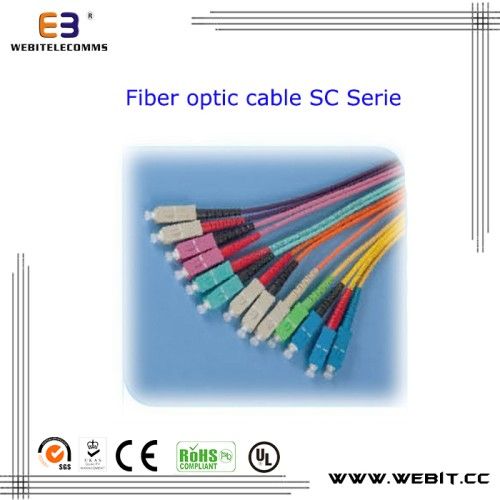

Sc Patch Cord, Sc Fiber Optic Cable, Sc Cable
| Model NO. | SC Patch Cord |
| Brand | ODM or OEM |
| Diameter | 0.9/2.0/3.0mm |
| Operating Temperature | -40~75°c°cg;c°c |
| Fiber Optical | Om1/Om2/Om3/Om4./OS2 |
| Plug | LC/Sc/St/MTRJ/FC/Mu |
| Sleeve | Ceramic/Pr.B Sleeve |
| Structure | SC |
| Ferrule Endface | Upc/APC |
| Fabrication Process | Welding |
| Trademark | WEBITELECOMMS |
| Origin | China |
| Application | to Connect Fiber Cable |
| Color | Orange, Water Green, Green, Purple, Purple Red |
| Return Loss | 60 Db |
| Outer Jacket | PVC/Lszh |
| Fiber Optical-2 | 9/125, 62.5/125/50/125 |
| Meter | 1, 2, 3, 4......M |
| Transmission Medium | Sm & Mmmp; Mmp; Mm |
| Number of Cores | Sx/Dx/ 12 Cores |
| Shape | Square |
| Connector Type | Sc J Patch Cord |
| Specification | ROHS 2.0 COMPLIANT |
| HS Code | 8547700000 |
Specifications
SC Patch Cord, SC Fiber Optic Cable, SC Cable
1. Low insertion loss
2. High resistance of corrosive
2 Features
1) Superior qualified standard PC, APC, UPC polishing;
2) 100% optic test: Insertion Loss: ≤ 0.3 (PC); ≤ 0.2 (APC); ≤ 0.2 (UPC);0.2 (UPC);0.2 (UPC);
3) 100% optic test: Return Loss: ≥ 45 (PC); ≥ 60 (APC); ≥ 55 (UPC); 55 (UPC); 55 (UPC);
4) φ 0.9mm, φ 2.0mm, φ 3.0mm cable optional;ble optional;ble optional;
5) Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector options
7) Simplex and duplex connector available;
8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.
Application
Telecommunicatoin netowrks
Testing equipment
Local area network
CATV
FTTH application
Premise installations
Data processing networks
Wide Area Networks (WANs)
Telecommunication networks
Industrial, mechanical and military
SC Patch Cord, SC Fiber Optic Cable, SC Cable
1. Low insertion loss
2. High resistance of corrosive
2 Features
1) Superior qualified standard PC, APC, UPC polishing;
2) 100% optic test: Insertion Loss: ≤ 0.3 (PC); ≤ 0.2 (APC); ≤ 0.2 (UPC);0.2 (UPC);0.2 (UPC);
3) 100% optic test: Return Loss: ≥ 45 (PC); ≥ 60 (APC); ≥ 55 (UPC); 55 (UPC); 55 (UPC);
4) φ 0.9mm, φ 2.0mm, φ 3.0mm cable optional;ble optional;ble optional;
5) Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector options
7) Simplex and duplex connector available;
8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.
Application
Telecommunicatoin netowrks
Testing equipment
Local area network
CATV
FTTH application
Premise installations
Data processing networks
Wide Area Networks (WANs)
Telecommunication networks
Industrial, mechanical and military
| Type | Standard,Master |
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemade) OS1 50/125, 62.5/125 (Multimode) OM2&OM1p;OM1p;OM1 50/125, 10G (Multimode) OM3 |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mmm, Φ1.8mm.8mmm, Φ1.8mm Φ1.6mm PVC or LSZH LSZH LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZHC or LSZHC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°)& 6°) 6°)& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master)ter)ter) ≤ 0.25dB (For Singlemode Standard)ard)ard) ≤ 0.25dB (For Multimode)ode)ode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) | UPC ≥ 50dB50dB50dB SPC ≥ 55dB55dB55dB APC ≥ 60dB (typ.65dB)5dB)5dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dBsmn;0.1dBmn;0.1dB |
| Operating temperature | -40 0 C to 85 0 C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC)or APC)or APC) 10mm ≤ R ≤ 25mm (For Standard)andard)andard) Apex Offset ≤ 30 μm (For Master)Master)Master) Apex Offset ≤ 50 μm (For Standard)andard)andard) Undercut -50nm ≤ U ≤ 50nme; 50nme; 50nm Tested by DORC ZX-1 |
